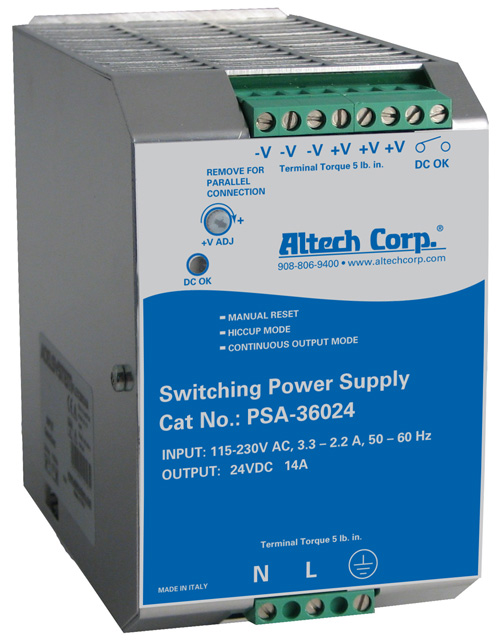

PSA-36024

AC/DC Power Supply - DIN Rail - 24VDC - 14A - Input 90-135VAC / 180 -264VAC switch select - Efficiency >91% - Overload & short Circuit Protected - UL 508 Listed IEC/EN 60950, EN 50178, IEC/EN 60950, EN60950-1, PELV EN 60204-1 ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

PSA-36024 is a single-phase industrial power supply from the PSA-360 series designed to deliver regulated 24V DC output at a rated current of 14A with a total power capacity of 336W. The unit features multiple overload and short-circuit protection modes (selectable hiccup, fold-back, or restart modes), efficiency above 91%, and output voltage adjustment range of 22–27V with line regulation of ±0.5% and load regulation of ±1%. It includes a built-in DC OK relay contact for preventive function monitoring, operates over an ambient temperature range of -25°C to +70°C with derating above 60°C, and is housed in a compact DIN rail-mountable enclosure with dimensions of 72×115×135 mm. The power supply is UL508-listed for industrial control equipment, EN60950-1 compliant, and supports easy parallel connection of up to 4 units for increased power capacity, making it ideal for industrial automation, control systems, and distributed power applications requiring reliable, regulated DC power.

Product Highlights:

Potential Applications:

Search Keywords: PSA36024

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Altech

Part No:

PSA-36024

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
