AZ983-1C-12DE by american zettler

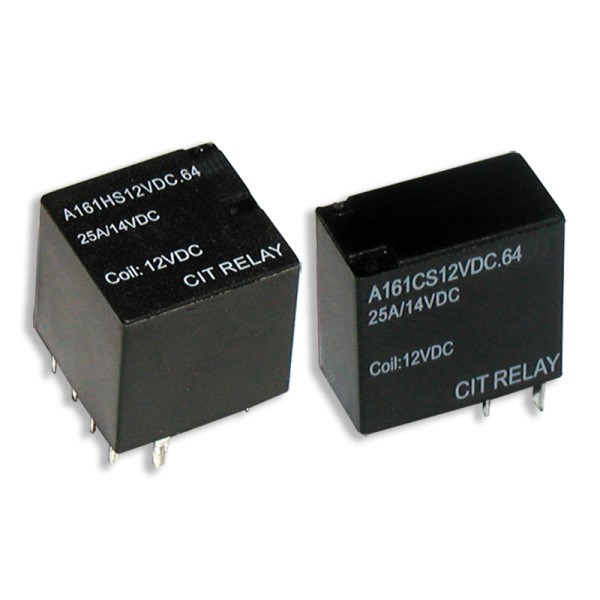

Image is representational - see manufacturer specifications
American Zettler Authorized Distributor

AZ983-1C-12DE

80AMP Super-ISO Automotive Relay 12VDC coil SPDT ...

View Datasheet Ask the Datasheet
RoHS Compliant
Tray Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The AZ983-1C-12DE is an 80 Amp mini-ISO automotive relay designed for high-current switching applications in automotive environments. This SPDT (1 Form C) relay features a 12 VDC nominal coil voltage with a coil resistance of 80 O and operates at a maximum continuous voltage of 15.6 VDC. The relay delivers a maximum switched power of 840 W and maximum switched current of 60 A at 75 VDC maximum, with silver tin oxide contacts providing low contact resistance of less than 50 milliohms. Operating characteristics include a 7 ms typical operate time and 5 ms typical release time, with a mechanical life expectancy of 1×107 operations and electrical life of 1×105 operations at 80 A and 14 VDC. The relay operates reliably across an ambient temperature range of -40°C to 85°C, features PCB terminals with copper alloy construction, and is housed in a PA enclosure rated UL94: V-0. This relay is ideal for automotive control systems, power distribution, and high-current switching applications requiring robust performance and long operational life.

Search Keywords: AZ9831C12DE

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
American Zettler
Part No:
AZ983-1C-12DE
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
400
Package Type:
Tray
Contact Form:
SPDT (1 Form C)
Relay Construction:
Non-Latching
Max Contact Current:
60A
Coil Voltage:
12 VDC
Coil Current:
150 mA
Coil Resistance:
80 Ohm
Contact Material:
Silver Tin Oxide
Must Operate Voltage:
7.8 VDC
Must Release Voltage:
1.2 VDC
Operate Time:
7 ms
Seal:
Sealed
Mounting:
Through Hole
Termination Style:
PC Pin
Operating Temperature:
-40 to 85 °C
Packaging:
N/A

IN STOCK: 0

On Order: 400   can ship 5/12/27

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 100

Factory Lead-Time 30 Weeks

Price (USD)

Qty
Unit Price
5
$6.05
25
$5.31
50
$5.12
100
$4.93
200
$4.79
300
$4.65
400 +
$4.50
