163A16599X by amphenol conec

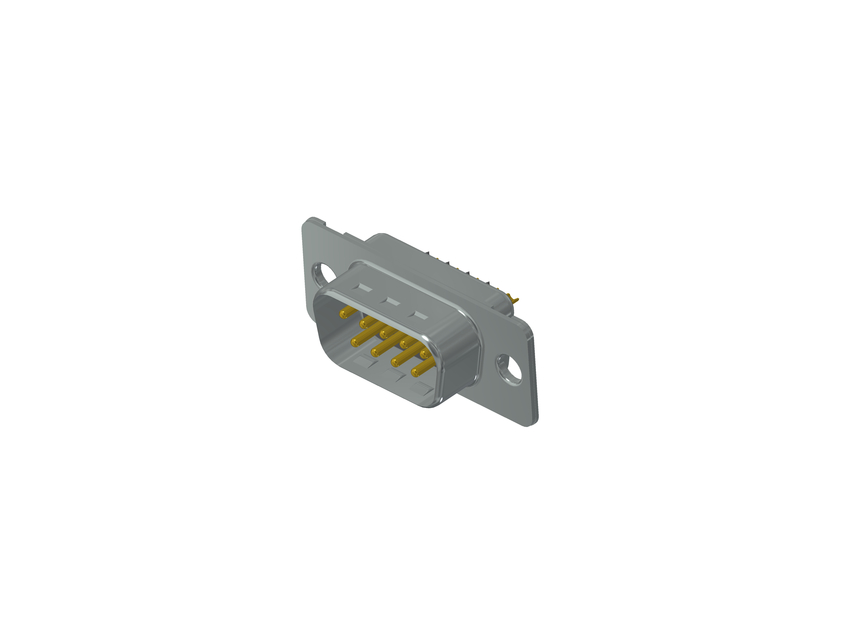

Image is representational - see mfr. specs

163A16599X

Amphenol Conec

Conn High Density D-Sub PL 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

163A16599X is a 15-position D-SUB HD connector designed for high-density interconnect applications. The connector features a steel shell with tin plating over nickel, PBT GF insulator material rated UL 94 V-0, and gold-flash plated copper alloy contacts. Key dimensional specifications include a length (dimension C) of 25.00 ±0.12 mm, width (dimension A) of 31.19 mm with -0.76 tolerance, and depth (dimension B) of 16.79 mm with +0.25 tolerance. The solder cup design accepts AWG 22 cable, making it suitable for robust signal transmission in industrial and telecommunications equipment where compact, reliable connections are required.

Search Keywords: 163A16599X

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol Conec
Part No:
163A16599X
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50

IN STOCK: 99

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
5
$7.36
25
$6.06
50
$5.39
100
$5.05
250
$5.04
500
$4.49
1,000
$4.27
2,500 +
$4.26
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
