97-3102A-24-22P by amphenol i/o

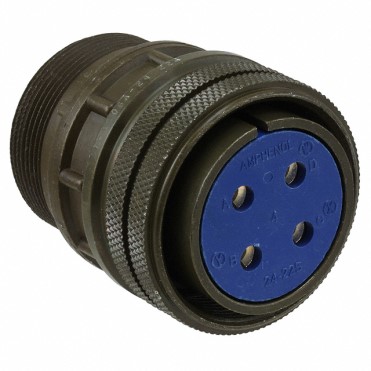

Image is representational - see manufacturer specifications
Amphenol I/O Authorized Distributor

97-3102A-24-22P

Conn Cylindrical Circular PIN 4 POS Solder Cup ST Box Mount 4 Terminal 1 Port Automotive ...

View Datasheet
RoHS Non-Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 97-3102A-24-22P is a box receptacle connector from Amphenol's 97 Series standard cylindrical connectors, designed for chassis and panel mounting with solid shell construction. This connector features a 24 shell size with insert arrangement 24-22, providing 4 contacts rated for #8 gauge wire with Service Rating D (1250 V DC / 900 V AC rms). The connector includes an integral polarizing key in the front shell and a threaded back shell compatible with standard MS/AN fittings. It operates across a temperature range of -55°C to +125°C and is UL recognized (File E115497) and CSA certified (File LR69183). The connector is intermateable and intermountable with existing 97 Series and SAE AS50151 connectors, making it suitable for industrial applications requiring reliable, field-proven cylindrical connector solutions.

Search Keywords: 973102A2422P

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol I/O
Part No:
97-3102A-24-22P
Alias/AKA:
97-3102A-24-22P
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25

IN STOCK: 5

Ships today, if you order in

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
1
$19.53
5
$18.76
10
$18.24
25
$17.92
50
$17.61
100
$17.07
250 +
$16.81
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
