PT02E-14-5S by amphenol i/o

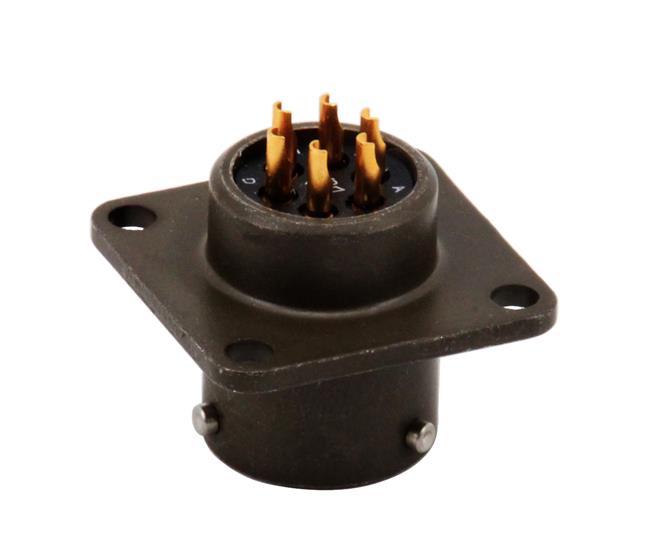

Image is representational - see manufacturer specifications
Amphenol I/O Authorized Distributor

PT02E-14-5S

Conn Miniature Cylindrical SKT 5 POS Solder ST Box Mount 5 Terminal 1 Port ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

The PT02E-14-5S from Amphenol Industrial Operations is box mount circular connector (MIL-DTL-26482 Series I), receptacle with female sockets, 5 position, shell size-insert 14-5 and solder cup termination. This is connector with bayonet lock fastening and environmental (no clamp) endbell. The PT02E-14-5S has copper alloy contacts with gold finish, neoprene insert and aluminum shell with olive drab cadmium finish. Operating temperature range is from -55°C to 125°C.

Search Keywords: PT02E145S

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol I/O
Part No:
PT02E-14-5S
Alias/AKA:
PT02E-14-5S
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Type:
Miniature Cylindrical
Gender:
RCP
Body Orientation:
Straight
Mounting:
Box Mount
Shell Size / Insert Arrangement:
14-5
Number of Contacts:
5
Contact Gender:
SKT
Contact Plating:
Gold
Termination Method:
Solder
Maximum Current Rating:
N/A
Maximum Voltage Rating:
1000 VAC
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 141

Ships today, if you order in

Price (USD)

Qty
Unit Price
1
$29.78
5
$27.86
10
$26.57
25
$25.78
50
$24.68
100
$23.66
250 +
$23.03
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
