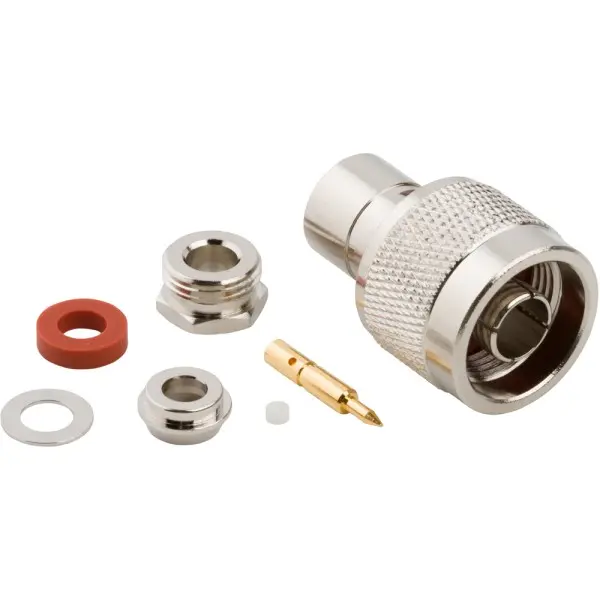

000-34025-RFX by amphenol rf
Image is representational - see manufacturer specifications
Amphenol RF Authorized Distributor

000-34025-RFX

RF Connector N-Type Straight Clamp Plug for RG-55 RG-55A RG-58 RG-58A RG-141 RG-142 RG-143 50 Ohm ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 34025-RFX is a Type N straight clamp plug connector designed for terminating RG-58 and RG-141 coaxial cables with solder-type inner conductor attachment. This connector features a clamp-style outer attachment mechanism and solder-based inner connection, providing reliable RF performance through 11 GHz. The connector dimensions include a body length of 1.90 inches (35.5 mm) and a center contact diameter of 0.212 inches (5.4 mm), with a reference plane diameter of 0.630 inches (16 mm). The 34025-RFX is commonly used in RF and microwave applications requiring durable, weatherproof medium-size connectors for medium to miniature coaxial cable termination, offering consistent performance in demanding field environments.

Search Keywords: 00034025RFX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
000-34025-RFX
Alias/AKA:
34025-RFX
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
VN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BAG
Type:
Type N
Impedance:
50 Ohm
Operating Frequency:
0 to 11 Hz to GHz
Gender:
Plug
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
Solder
Operating Temperature:
-65 to 165 °C
Dimension:
33.2 x 21 mm

IN STOCK: 14

Ships today, if you order in

Manufacturer Stock: 1,368   can ship 11/6/26

Minimum Order Quantity: 5

Factory Lead-Time 14 Weeks can ship 1/28/27

Price (USD)

Qty
Unit Price
5
$13.55
25
$11.56
50
$10.93
100
$10.35
250
$10.32
500
$9.67
1,000 +
$9.64
