000-34450 by amphenol rf
Image is representational - see manufacturer specifications
Amphenol RF Authorized Distributor

000-34450

The 000-34450 is a 50 Ohm panel-mount triaxial receptacle connector. ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

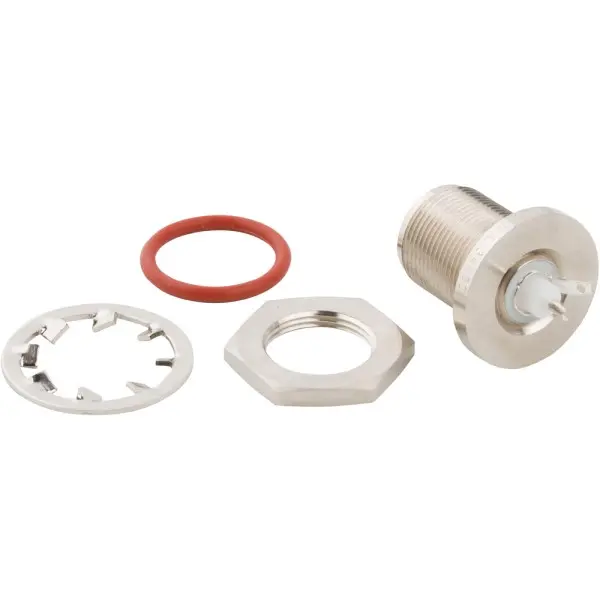

The 000-34450 is a triaxial receptacle connector featuring a characteristic impedance of 50 Ohms. It is constructed with a nickel-plated brass body, a silver-plated beryllium copper contact, and a Teflon insulator for robust electrical and mechanical performance. This panel-mount connector is designed with an 11/16-24UNEF-2A thread and fits a recommended mounting hole of 17.65 ±0.1 mm. The triaxial design provides enhanced shielding and signal integrity, making it ideal for use in precision test and measurement equipment and other high-performance applications.

Search Keywords: 00034450

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
000-34450
Alias/AKA:
34450
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BAG
Type:
Triax
Impedance:
50 Ohm
Operating Frequency:
0 to 500 Hz to MHz
Gender:
Jack
Mounting:
Panel Mount
Body Orientation:
Straight
Terminate To:
Wire
Termination Method:
Solder Cup
Operating Temperature:
N/A
Dimension:
32.5 x 25.4 mm

IN STOCK: 70

Can Ship immediately

Manufacturer Stock: 1   can ship 11/6/26

MOQ for out of Stock Qty: 25

Factory Lead-Time 14 Weeks can ship 1/28/27

Price (USD)

Qty
Unit Price
1
$86.92
5
$86.07
10
$72.62
25
$67.74
50
$67.57
75
$67.40
100 +
$61.43
