031-221-RFX by amphenol rf

031-221-RFX

Amphenol RF

RF Connector - BNC Straight Jack - Solder Cup - Bulkhead - 50 Ohm - Maximum Frequency 4 GHz - Zinc Die Cast. ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

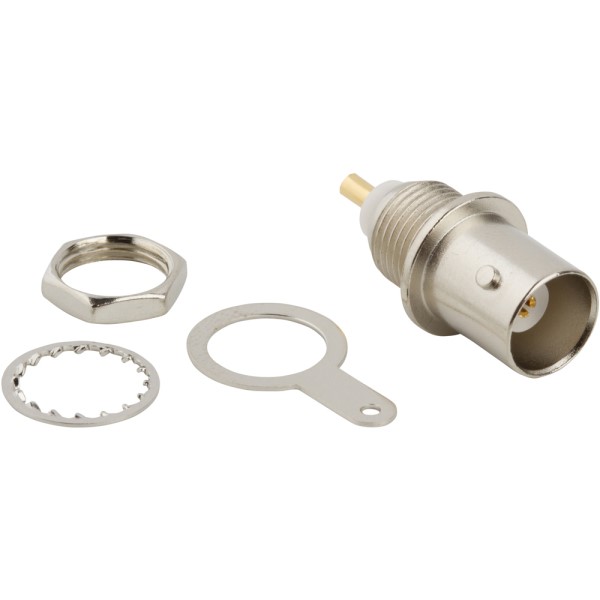

The 031-221-RFX is a BNC straight Bulkhead Jack with gold-plated phosphor bronze contacts, nickel-plated zinc die-cast body and a Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. Designed to accommodate a large variety of RG and industry standard cables. This 50Ω miniature BNC connector is designed for RG58, RG59, RG179 and RG316 cable.

Search Keywords: 031221RFX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
031-221-RFX
RoHS:
Yes
HTS:
8536694010
COO:
VN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Bag
Type:
BNC
Impedance:
50 Ohm
Operating Frequency:
0 to 4 Hz to GHz
Gender:
Jack
Mounting:
Panel Mount
Body Orientation:
Straight
Terminate To:
Wire
Termination Method:
Solder Cup
Operating Temperature:
-65 to 165 °C
Dimension:
27 x 12.7 mm
  Possible Replacement options available.  See Alternatives

IN STOCK: 4,332

Ships today, if you order in

Manufacturer Stock: 22,528   can ship 12/1/25

Minimum Order: 100

Multiple: 100

Factory Lead-Time 11 Weeks can ship 2/5/26

Price (USD)

Qty
Unit Price
100
$1.566
300
$1.524
500
$1.514
1,000
$1.494
2,500
$1.401
5,000
$1.391
7,500 +
$1.380
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
