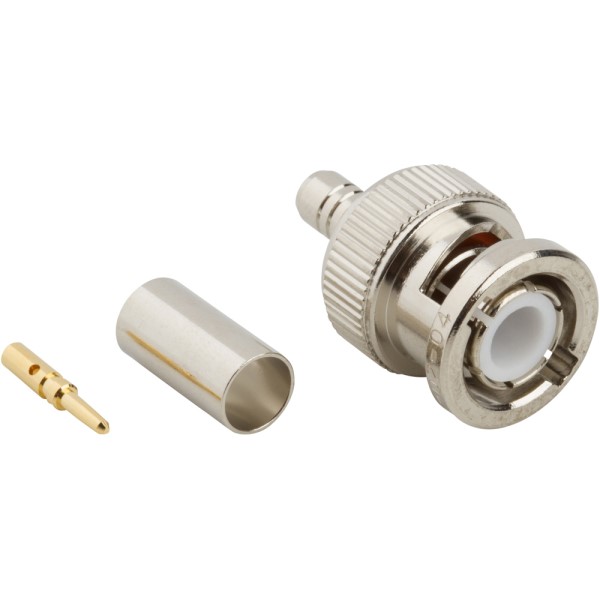

Image is representational - see manufacturer specifications
Amphenol RF Authorized Distributor

031-70000

RF Connector BNC Straight Crimp Plug for RG-6 Cable 75 Ohm ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 031-70000 is a BNC straight cable plug designed for 50O RF applications. It features a nickel-plated body with gold-plated contacts and utilizes crimp termination for secure cable attachment. This connector is rated for industrial-grade applications and is compatible with miniature to subminiature coaxial cables such as RG-58, RG-59, and similar cable types. The BNC connector design enables quick quarter-turn bayonet coupling, making it ideal for cable termination in RF systems operating up to 11 GHz with low reflection characteristics through 4 GHz. Common applications include test equipment, instrumentation, and RF signal distribution systems where reliable miniature connectors are required.

Search Keywords: 03170000

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
031-70000
Alias/AKA:
31-70000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BAG
Type:
BNC
Impedance:
75 Ohm
Operating Frequency:
0 to 4 Hz to GHz
Gender:
Plug
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
Crimp
Operating Temperature:
-65 to 165 °C
Dimension:
34.3 x 14.3 mm

IN STOCK: 396

Can Ship immediately

Manufacturer Stock: 6,305   can ship 11/9/26

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 25

Factory Lead-Time 14 Weeks can ship 2/1/27

Price (USD)

Qty
Unit Price
5
$6.62
10
$6.41
25
$6.40
50
$6.34
75
$6.33
100 +
$6.30
