034-5017 by amphenol rf

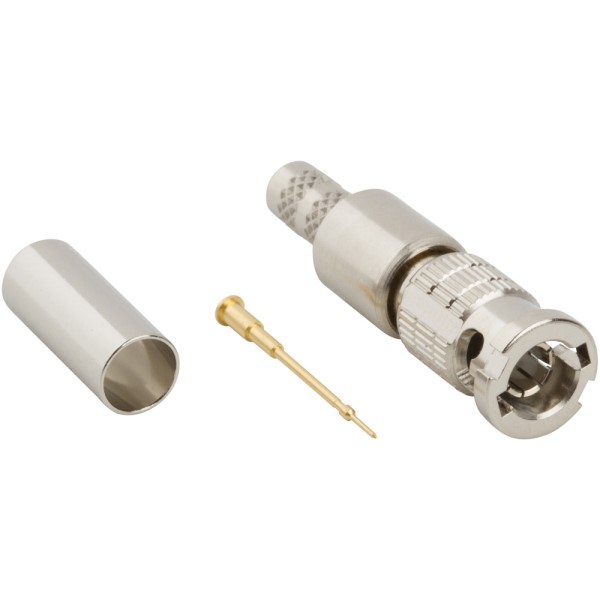

Image is representational - see mfr. specs

034-5017

Amphenol RF

The 034-5017 is a 50 Ohm, straight HD-BNC plug connector designed for use with LMR 195-UF cable. ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 034-5017 is a 50 Ohm, straight HD-BNC plug designed for terminating LMR 195-UF cable. It operates over a frequency range of DC to 6 GHz and provides a minimum return loss of 30 dB from DC to 3 GHz. The connector is constructed with a nickel-plated brass body, a gold-plated phosphor bronze contact, and a PTFE insulator, ensuring a mechanical durability of at least 500 mating cycles. Designed for robust performance, it meets various MIL-STD-202 environmental standards and offers IP67 sealing when mated, making it suitable for high-density applications requiring reliable connections.

Search Keywords: 0345017

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
034-5017
Alias/AKA:
34-5017
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
BNC
Impedance:
50
Operating Frequency:
0 to 6 Hz to GHz
Gender:
Plug
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
LMR195 Cable
Termination Method:
N/A
Operating Temperature:
N/A
Dimension:
26.42 x 7.75 mm

IN STOCK: 157

Can Ship immediately

Manufacturer Stock: 1   can ship 5/11/26

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 25

Factory Lead-Time 13 Weeks can ship 7/27/26

Price (USD)

Qty
Unit Price
5
$15.13
10
$12.85
25
$11.94
50
$11.29
75
$11.26
100 +
$9.86
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
