112202

Name: 112202
Brand: Amphenol Rf
SKU: 48920979
Price: 37.75 USD
Availability: InStock

RF Connector - BNC Straight Crimp Jack for RG-58 LMR-195 50 Ohms Bulkhead ...

View Datasheet

Ask the Datasheet

RoHS Compliant

BAG Packaging

Certificate of Compliance

DESCRIPTION

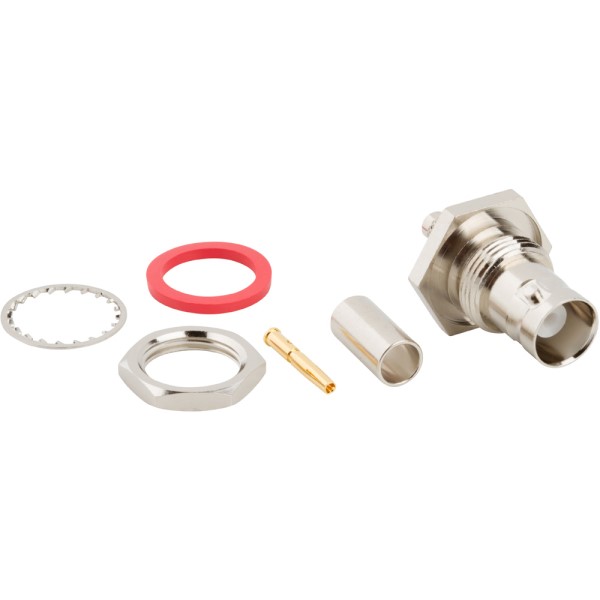

112202 is a BNC bulkhead crimp jack connector designed for use with RG58/U and 141/U coaxial cables. The connector features a 1/2-28 UNEF-2A thread interface with a 17.5 hex configuration and supports a maximum panel thickness of 3.5mm. Key components include a copper ferrule with nickel plating, brass hex nut and lock washer with nickel plating, phosphor bronze contact pin with gold plating, and a Teflon insulator. Crimp specifications include a ferrule hex crimp size of 0.213" and contact pin hex crimp size of 0.068". This connector is ideal for RF applications requiring secure bulkhead mounting and reliable signal transmission in telecommunications, test equipment, and instrumentation systems.

Product Highlights:

Potential Applications:

Search Keywords: 112202

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Amphenol RF

Part No:

112202

Alias/AKA:

B6421A1-NT3G-58CU-50

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536694010

COO:

ECCN:

EAR99
