112412

BNC Connector - 50 Ohms - Jack - R/A - Thru-hole - Bulkhead Rear Mount - No Mtg Hardware ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 112412 is a BNC right-angle PCB mount receptacle jack designed for 50-ohm RF applications with a frequency range of 0 to 1 GHz. It features a robust construction with a zinc alloy connector body (nickel-plated), phosphorus bronze center contact (gold-plated), and PBT glass-fiber reinforced housing (UL 94 V-0 rated), ensuring excellent electrical performance and durability. The connector operates at up to 500 volts RMS with a dielectric withstanding voltage of 1500 volts RMS, contact resistance of 3.0 milliohms maximum, and insulation resistance of 5000 megaohms minimum, while maintaining mechanical reliability through 500 mating/unmating cycles. With an operating temperature range of -65°C to +165°C and RoHS compliance, this connector is ideal for RF signal transmission in test equipment, communications systems, and industrial instrumentation where reliable high-frequency connections are required.

Search Keywords: 112412

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
112412
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
TW
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BAG
Type:
BNC
Impedance:
50
Operating Frequency:
0 to 4 Hz to GHz
Gender:
Jack
Mounting:
Through Hole
Body Orientation:
Right Angle
Terminate To:
PCB
Termination Method:
Solder
Operating Temperature:
N/A
Dimension:
14.5 x 34.7 x 13.1 mm

IN STOCK: 388

Can Ship immediately

Manufacturer Stock: 671   can ship 11/16/26

Minimum Order Quantity: 10

Factory Lead-Time 14 Weeks can ship 2/8/27

Price (USD)

Qty
Unit Price
10
$4.69
50
$4.18
100
$3.93
250
$3.63
500
$3.48
1,000
$3.16
2,500
$3.03
5,000 +
$3.02
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

031-5653

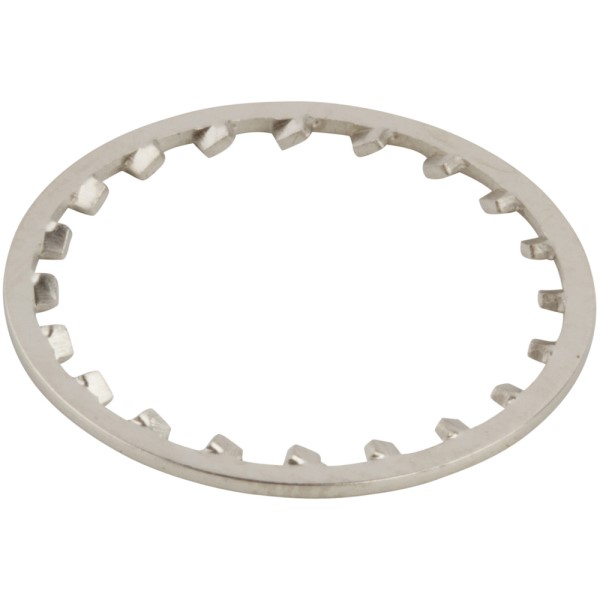

Lockwasher, Internal Tooth - Phosphor-Bronze - Nickel-plated - 13mm ID

031-5652

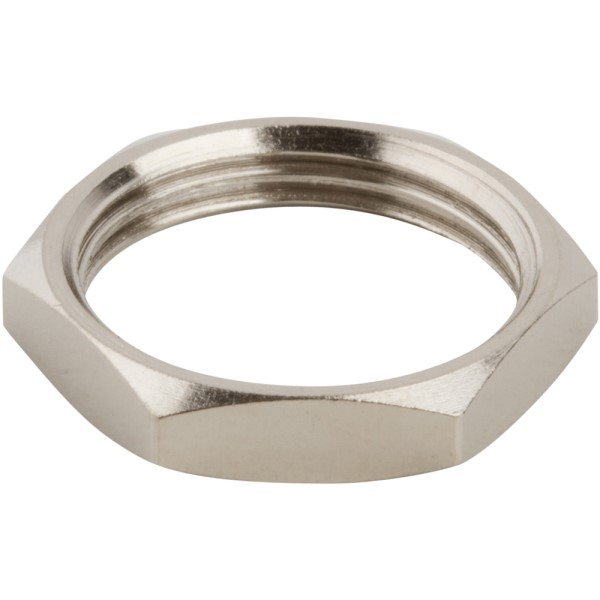

Hex Nut, Chamfered - Brass - Nickel-plated - 14.2mm D Flat x 2.88mm TH - 1/2-28UNEF-2B
