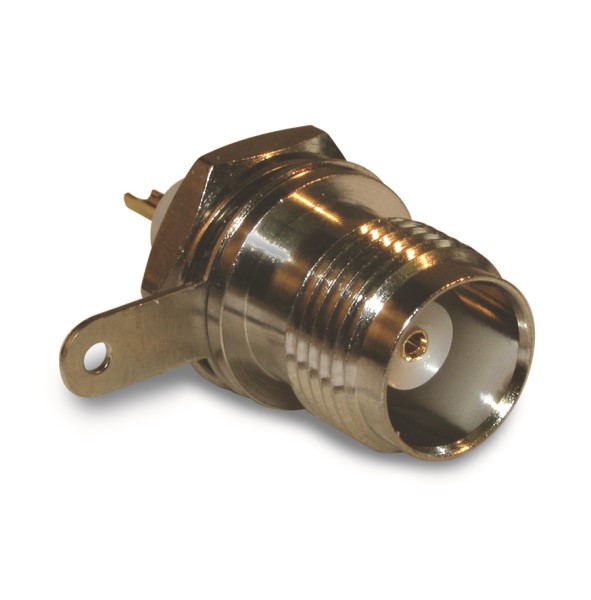

122332
122332

In Stock: 195

Minimum Order: 10

VIEW PRODUCT
31-2301-RFX by amphenol rf
Image is representational - see manufacturer specifications
Amphenol RF Authorized Distributor

31-2301-RFX

Conn TNC RCP 0Hz to 11GHz 50Ohm Solder Cup ST Panel Mount Silver/Gold Automotive ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

31-2301-RFX is a TNC rear mount bulkhead jack receptacle designed for RF connectivity applications. This commercial-grade connector features a nickel-plated body and silver-plated contact, with a 50 O nominal impedance and frequency range from DC to 11 GHz. The threaded coupling interface (7/16 threaded coupling per MIL-STD-348) ensures secure mating in vibration-intensive environments, with a VSWR of 1.3 max for straight configurations. The connector operates over a temperature range of -65°C to +165°C and offers a minimum durability of 500 mating cycles. Ideal for antennas, base stations, cellular, instrumentation, telecom, and WLAN network applications where reliable RF performance is required.

Search Keywords: 312301RFX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
31-2301-RFX
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
VN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BAG
Type:
TNC
Impedance:
50 Ohm
Operating Frequency:
0 to 11 Hz to GHz
Gender:
RCP
Mounting:
Panel Mount
Body Orientation:
Straight
Terminate To:
Wire
Termination Method:
Solder Cup
Operating Temperature:
-65 to 165 °C
Dimension:
21.84 mm
