919-107J-51SX by amphenol rf
Image is representational - see mfr. specs

919-107J-51SX

Amphenol RF

RF Connector MCX Straight Crimp Jack for RG-174 RG-188A RG-316 50 Ohm ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

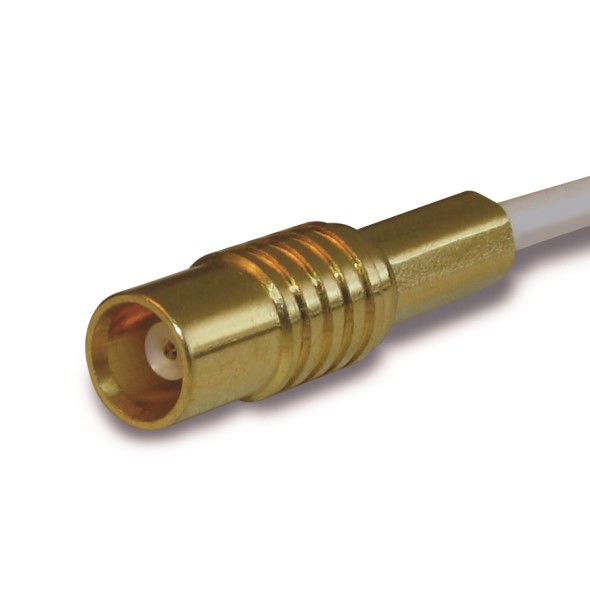

The 919-107J-51SX is an MCX straight jack connector designed for 50 O coaxial cable applications with broadband performance from DC to 6 GHz. This connector features a snap-on coupling mechanism per CECC 22220 with gold-plated brass body and beryllium copper female contact, providing excellent electrical performance and durability. Key electrical characteristics include a maximum VSWR of 1.06 at DC–2.5 GHz, insertion loss of 0.10 dB at 1 GHz, and RF leakage of 60 dB minimum at 1 GHz for flexible cables. The connector is rated for a voltage of =335 Vrms and operates reliably across a temperature range of -55°C to +155°C, with mechanical durability of 500 mating cycles minimum. The 919-107J-51SX is widely used in automotive, wireless LAN, broadband, and wireless infrastructure applications where compact size, low reflection, and reliable quick-connect performance are essential.

Search Keywords: 919107J51SX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
919-107J-51SX
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
MCX
Impedance:
50 Ohm
Operating Frequency:
0 to 6 Hz to GHz
Gender:
Jack
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Flexible Cable
Termination Method:
Crimp
Operating Temperature:
-55 to 155 °C
Dimension:
15.46 x 4.5 mm
  Possible Replacement options available.  See Alternatives

IN STOCK: 217

Ships today, if you order in

Manufacturer Stock: 107   can ship 5/25/26

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 25

Factory Lead-Time 13 Weeks can ship 8/13/26
