920-504J-52P by amphenol rf

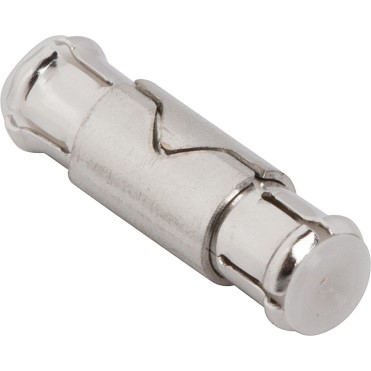

Image is representational - see mfr. specs

920-504J-52P

Amphenol RF

RF Connector, HD-EFI Straight PCB Jack, Through Hole Legs, Limited Detent, 50 Ohm ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

920-504J-52P is an RF connector component manufactured by Amphenol RF. This product is supported with a 3D component model compatible with ANSYS HFSS software for PCB launch simulation and design verification. The 3D model files are provided in .a3dcomp format and require the latest version of ANSYS HFSS software for proper import. This connector is suitable for RF and microwave applications where accurate electromagnetic simulation is required during the design phase.

Search Keywords: 920504J52P

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
920-504J-52P
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Tray

IN STOCK: 33

Can Ship immediately

Buy all 33 in-stock or the regular minimum order quantity of 50

Manufacturer Stock: 1   can ship 6/15/26

On Order: 1,000   can ship 7/2/26

Stock lot only: 33

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 13 Weeks can ship 9/1/26

Price (USD)

Qty
Unit Price
1
$5.563
50
$5.057
100
$4.769
250
$4.429
500
$4.213
1,000
$4.017
2,500
$3.760
5,000
$3.749
7,500 +
$3.739
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
