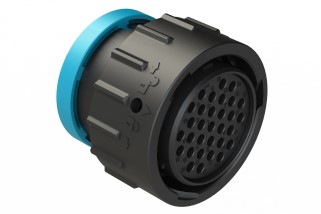

Image is representational - see mfr. specs

AHDM04-24-23PR

Name: AHDM04-24-23PR
Brand: Amphenol Sine Systems
SKU: 51217501
Price: 79.45 USD
Availability: InStock

Amphenol Sine Systems

Receptacle, Size 24, 23 positions, Pin, reduced diameter seal, wide thread ...

Datasheet

RoHS Compliant

BOX Packaging

Certificate of Compliance Guarantee

DESCRIPTION

AHDM04-24-23PR is a DuraMate™ AHDM Series environmentally-sealed, multi-pin, heavy-duty metal circular connector receptacle with pin contacts. This connector features a Shell Size 24 with 23 positions using Size 16 contacts rated at 13A and 250V, and utilizes a circular bayonet locking system with integrated wide thread. The connector body is constructed from zinc alloy with a thermoplastic UL94-V0 insulation insert, copper alloy contacts, and silicone rubber sealing material. It offers IP67, IP68, and IP69K ratings for dust-tight and waterproof protection in mated condition, with minimum mating cycles exceeding 100. This connector is designed for harsh-environment, off-road applications where reliable, environmentally-sealed connections are critical.

Product Highlights:

Potential Applications:

Search Keywords: AHDM042423PR

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Amphenol Sine Systems

Part No:

AHDM04-24-23PR

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538908180

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
