AHDP04-24-16PN-SRA by amphenol sine systems

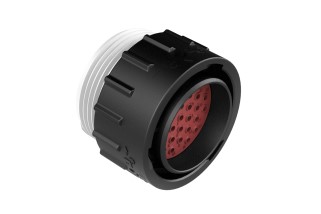

Image is representational - see mfr. specs

AHDP04-24-16PN-SRA

Amphenol Sine Systems

Size 24 receptacle, 16 positions, pin, standard arrangement, normal seal, smooth ring adapter, dustcap included ...

Datasheet

RoHS Compliant

BOX Packaging

Certificate of Compliance Guarantee

DESCRIPTION

AHDP04-24-16PN-SRA is an environmentally-sealed, multi-pin, heavy-duty plastic circular connector from Amphenol Sine Systems' DuraMate™ AHDP family designed for harsh-environment, off-road applications. The connector features a shell size 24 with 16-position capacity, pin configuration, and smooth ring adapter (SRA) for reliable mating and unmating cycles. It accommodates multiple contact sizes (Size 12 at 25A and Size 16 at 13A) with a rated voltage of 250V, providing flexibility for various power distribution and signal transmission requirements. The connector incorporates a circular bayonet locking system with environmentally-sealed construction to withstand demanding industrial and agricultural environments, making it ideal for ISOBUS-compatible equipment, tractors, implements, and off-road machinery where robust connectivity and environmental protection are critical.

Product Highlights:

Potential Applications:

Search Keywords: AHDP042416PNSRA

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Amphenol Sine Systems

Part No:

AHDP04-24-16PN-SRA

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538908180

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
