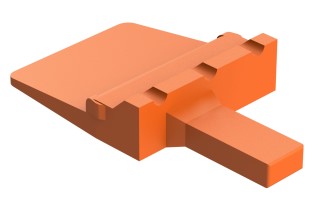

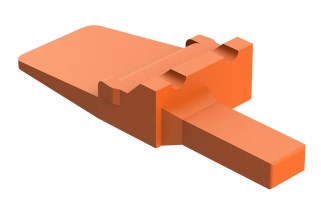

Image is representational - see mfr. specs

AWM-12P

Amphenol Sine Systems

12-Way Wedgelock Receptacle, Male ...

Datasheet

RoHS Compliant

EACH Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The AWM-12P is a 12-position heavy-duty multi-pin connector from the ATM Series™ designed for demanding industrial applications requiring robust environmental sealing and reliable electrical connections. It features an integrated latching system that ensures definitive electrical and mechanical connection, with IP68 and IP69K ratings in mated condition providing dust-tight protection and high-pressure waterproof capability. The connector operates across a temperature range of -55°C to +125°C, supports a maximum current of 7.5A at 250V, and utilizes thermoplastic UL94-VO housing with silicone elastomer seals for superior environmental resistance. The housing incorporates excellent UV resistance and dielectric/mechanical properties, while the stamped and formed copper alloy contacts are nickel-plated for corrosion resistance. This connector is ideal for marine, heavy equipment, agricultural, automotive, and alternative energy applications where harsh environmental conditions and reliable interconnection are critical requirements.

Product Highlights:

Potential Applications:

Search Keywords: AWM12P

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Amphenol Sine Systems

Part No:

AWM-12P

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
