AWV-18S by amphenol sine systems

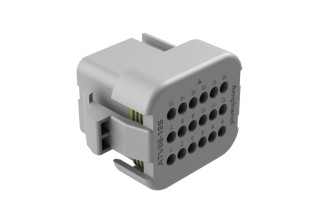

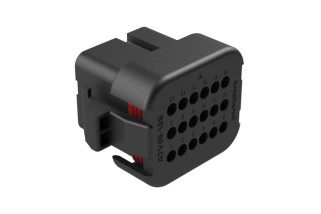

Image is representational - see mfr. specs

AWV-18S

Amphenol Sine Systems

Wedgelock for 18 position ATV plug ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The AWV-18S is an 18-position heavy-duty connector plug featuring an integrated wedgelock system designed for reliable mating and contact alignment in demanding applications. This connector accommodates Size 16 contacts rated for 13A current with a maximum voltage rating of 250V, supporting wire gauges from 14-22 AWG. The thermoplastic housing with built-in contact sealing and silicone elastomer seals achieves IP68 protection in mated condition, while the integrated latch and wedgelock mechanism ensure secure connection retention. Operating across a temperature range of -40°C to +125°C with over 100 mating cycles, the AWV-18S demonstrates exceptional durability through rigorous testing including thermal shock (-55°C to +125°C), 50g shock resistance, and vibration tolerance up to 20g. This connector is ideally suited for on and off-highway vehicles, marine, industrial, and agricultural applications where harsh environmental conditions and reliable electrical continuity are critical requirements.

Search Keywords: AWV18S

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Amphenol Sine Systems
Part No:
AWV-18S
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Package Type:
BOX
Type:
Housing3504
Mounting:
Cable Mount3496
Body Orientation:
Straight3485
Gender:
F3489
Pitch:
N/A
Termination Method:
Crimp3503
Number of Contacts:
18
Maximum Voltage Rating:
2503494V
Maximum Current Rating:
13 A
Operating Temperature:
-55 to 125 °C

IN STOCK: 431

Can Ship immediately

On Order: 2,600   can ship 7/30/26

Minimum Order Quantity: 200

Multiple: 200

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$0.5519
200
$0.5017
600
$0.4861
1,000
$0.4642
2,600
$0.3987
5,000
$0.3823
7,600
$0.3814
10,000
$0.3721
15,000 +
$0.3712
Suppliers Standard Package
