111812P8 by anderson power products

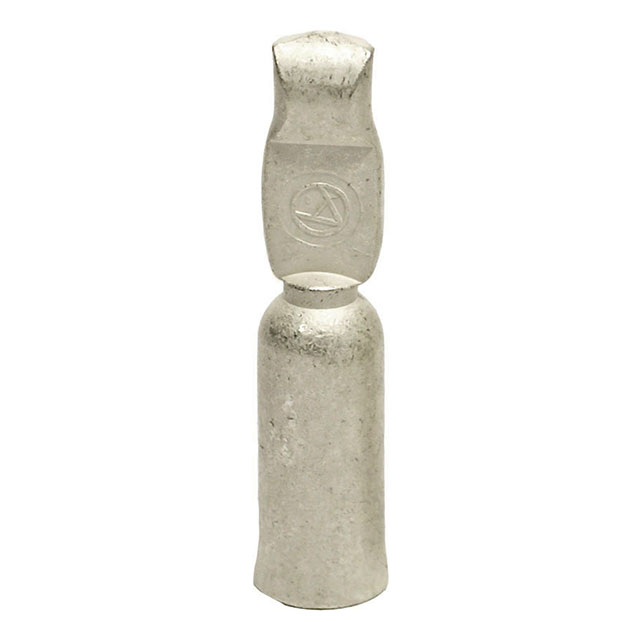

Image is representational - see mfr. specs

111812P8

Anderson Power Products

Connector Accessories Retaining Pin Straight Polycarbonate ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 111812P8 is a retaining pin for Powerpole PP120 connectors used to keep stacked housings from separating. This pin is inserted into the circular opening between two housings stacked side by side, providing mechanical retention for multi-pole connector assemblies. The pin features a dimension A of 0.196 to 0.207 inches (4.98 to 5.26 mm) and a dimension B of 0.560 inches (14.220 mm), with a tolerance of ±0.015 inches (0.38 mm). Designed for use with the PP120 series, which accommodates up to 1/0 (50 mm²) wires and handles currents up to 240 amps, this retaining pin is essential for maintaining connector integrity in high-current applications such as battery systems and power distribution.

Search Keywords: 111812P8

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Anderson Power Products
Part No:
111812P8
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
7318290000
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Operating Temperature:
-20 to 105 °C

IN STOCK: 644

Can Ship immediately

MOQ for In Stock Qty: 25

MOQ for out of Stock Qty: 250

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
25
$1.125
50
$1.122
100
$1.120
250
$1.117
500
$0.837
750
$0.782
1,000 +
$0.766
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
