1327G7-BK by anderson power products

1327G7-BK

Anderson Power Products

PP15/45-HSG W/SPG-WHITE ...

RoHS Compliant
Bulk Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

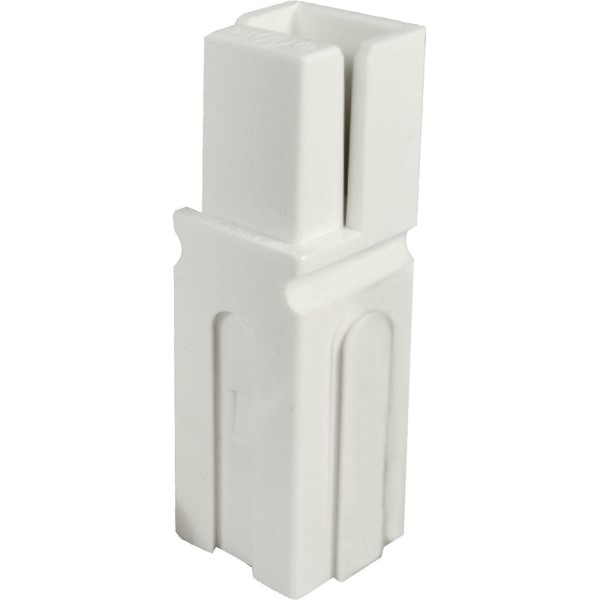

The 1327G7 is a Standard Housing for use with the PP15/45 Powerpole finger proof connectors. The original housing design has an open interface. Will not mate with finger proof housings. Improved on the original APP® design by adding ribs to mating interface to protect against accidental contact with live circuits. Meets the requirements of UL1977 section 10.2. Will not mate with standard housings. They can be used for wire-to-wire or wire-to-board applications. Wire sizes from #20AWG (0.75mm²) to #10AWG (6mm²) offer power capabilities up to 55A per pole. Finger proof housings and the ability to incorporate first-mate last-break ground connectors enhance the capabilities of this Powerpole® series.

Search Keywords: 1327G7BK

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Anderson Power Products
Part No:
1327G7-BK
RoHS:
Yes
HTS:
8538907080
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2500
Package Type:
Bulk
Mounting:
Panel Mount
Body Orientation:
Straight
Gender:
N/A
Termination Method:
Crimp
Number of Contacts:
1
Maximum Voltage Rating:
600 V
Maximum Current Rating:
15/45 A
Operating Temperature:
-20 to 105 °C

IN STOCK: 23,832

Ships today, if you order in

On Order: 25,000   can ship 12/1/25

Minimum Order: 50

Factory Lead-Time 4 Weeks

Price (USD)

Qty
Unit Price
50
$0.5690
500
$0.3848
1,000
$0.3474
2,500
$0.3417
5,000
$0.3376
7,500
$0.3175
10,000
$0.3160
15,000 +
$0.3144
Click for Quote

Accessories
