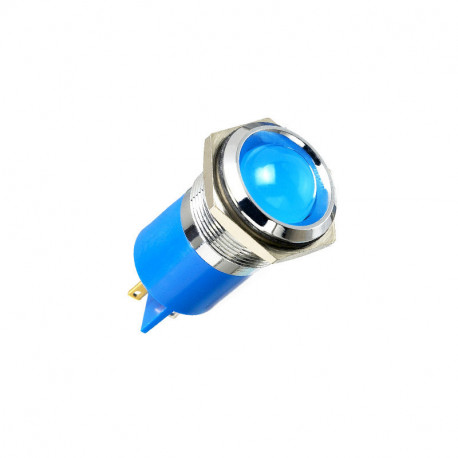

Image is representational - see mfr. specs

Q22F1BXXR12E

Name: Q22F1BXXR12E
Brand: Apem Inc
SKU: 10580099
Price: 32.49 USD
Availability: InStock

22mm dia panel mount indicator - Uni Color LED - Flush Mount - Red - 12VDC - Solder Lug/Faston Terminals - Plated Brass - Black - IP67 ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

Q22F1BXXR12E is a Ø22 mm panel mount LED indicator designed for industrial control and signaling applications. It features a rear epoxy body with M22 x 1.0 thread mounting, solder lug/faston terminals (2.8 x 0.8 mm), and 200 mm ±10 mm wire leads for flexible installation. The indicator has a 16.75 mm colored diffused epoxy lens or super bright LED option, with a viewing angle of 30–100° depending on the model configuration. Operating temperature range is -40°C to +85°C for the rear epoxy body, with IP67 sealing available per EN60529, and a life expectancy of 100,000 hours. The product is commonly used in automotive dashboards, industrial control panels, and equipment status indication where reliable, long-life LED signaling is required.

Product Highlights:

Potential Applications:

Search Keywords: Q22F1BXXR12E

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

APEM Inc.

Part No:

Q22F1BXXR12E

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8539520091

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
