02977048 by aptiv (formerly delphi)

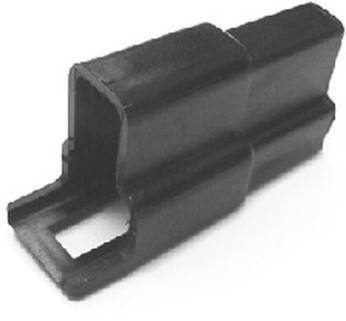

Image is representational - see mfr. specs

02977048

Aptiv (formerly Delphi)

Connector - 4 Contact - Female - 56 SERIES 6.3 Unsealed ...

Datasheet
RoHS Compliant
EACH Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

02977048 is a low-voltage automotive connector terminal designed for reliable electrical connections in vehicle applications. The terminal features a two-piece construction with an integrated floating spring made of beryllium copper or copper nickel silicon, ensuring consistent contact performance across multiple mating cycles. It exhibits a contact resistance of less than 0.5 mO, a contact mating force of less than 5 N, and an unmating force of less than 1 N, with a maximum operating temperature of 150°C and maximum vibration rating of 30 G. The terminal supports a maximum current of 18 A and is available in multiple wire size ranges from 0.35 to 6.0 mm², with options for tin or gold plating and sealed or unsealed configurations. These terminals are commonly used in door-to-body connections, firewall interconnections, and battery control systems in automotive electrical architectures.

Search Keywords: 02977048

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Aptiv (formerly Delphi)
Part No:
02977048
Alias/AKA:
2977048
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1400
Package Type:
EACH

IN STOCK: 3,999

Can Ship immediately

Minimum Order Quantity: 100

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
100
$0.3607
500
$0.3453
1,400
$0.3388
2,800
$0.3363
5,600
$0.3346
8,400
$0.3329
11,200
$0.3312
25,200 +
$0.3296
Suppliers Standard Package
