13520101 by aptiv (formerly delphi)

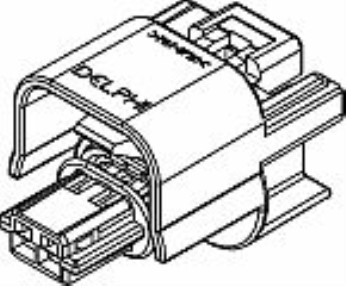

Image is representational - see manufacturer specifications
Aptiv (formerly Delphi) Authorized Distributor

13520101

Connector - 2 Contact - Female - GT 150 Sealed ...

View Datasheet Ask the Datasheet
RoHS Compliant
BULK Packaging
Accessories
Certificate of Compliance

DESCRIPTION

13520101 is a two-piece box and blade automotive terminal designed for heavy-duty performance and high current applications. It features an integrated floating spring made of beryllium copper or copper nickel silicon, with a tangless/lanceless locking mechanism and APEX® terminal cavity design. The terminal supports a blade size of 1.5 mm, wire gauge range of 22-16 AWG (0.35-1.5 mm²), and is available in both female and male genders with unsealed, mat sealed, or cable sealed options. With plating options including tin (Sn) and gold (Au), it delivers contact resistance below 0.5 mO, contact mating force below 5 N, and maximum current rating of 18 A at temperatures up to 150°C. This terminal is ideal for automotive electrical systems requiring reliable, high-current connections with excellent vibration resistance up to 30 G.

Search Keywords: 13520101

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Aptiv (formerly Delphi)
Part No:
13520101
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538900100
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1300
Package Type:
BULK

IN STOCK: 2,650

Can Ship immediately

Minimum Order Quantity: 50

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
50
$0.603
500
$0.572
1,300
$0.561
2,600
$0.558
5,200
$0.557
7,800
$0.556
10,400
$0.554
15,600 +
$0.553
Supplier's Standard Package
