15326801 by aptiv (formerly delphi)

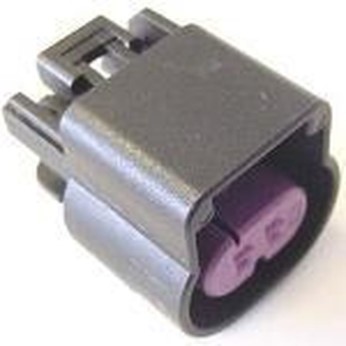

Image is representational - see manufacturer specifications
Aptiv (formerly Delphi) Authorized Distributor

15326801

Connector - 2 Contact 1.5 GT 150 Sealed ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 15326801 is a low-voltage automotive connector terminal designed for use in APEX® series connector systems manufactured by Aptiv. This terminal is rated for a maximum current of 18 A and operates across a temperature range of -40°C to +150°C, with a maximum vibration rating of 30 G. The terminal features a contact resistance of less than 0.5 mO, a contact mating force of less than 5 N, and an unmating force of less than 1 N, ensuring reliable electrical connections with minimal insertion/extraction effort. Available in both male and female configurations with tin (Sn) or gold (Au) plating options, this terminal accommodates wire sizes ranging from 0.35 mm² to 8.0 mm² depending on the specific variant. The terminal is commonly used in automotive electrical systems, power distribution networks, and sensor applications where robust, low-resistance connections are required in compact, sealed or unsealed housing configurations.

Search Keywords: 15326801

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Aptiv (formerly Delphi)
Part No:
15326801
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538900100
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1100

IN STOCK: 0

Minimum Order Quantity: 50

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
50
$1.192
250
$1.089
1,100
$0.919
3,300
$0.876
5,500
$0.779
7,700
$0.777
11,000
$0.775
15,400 +
$0.773
Supplier's Standard Package
