LCM1500U-T by artesyn / advanced energy

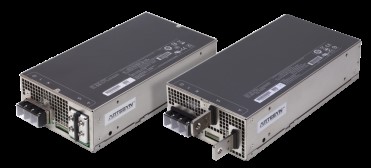

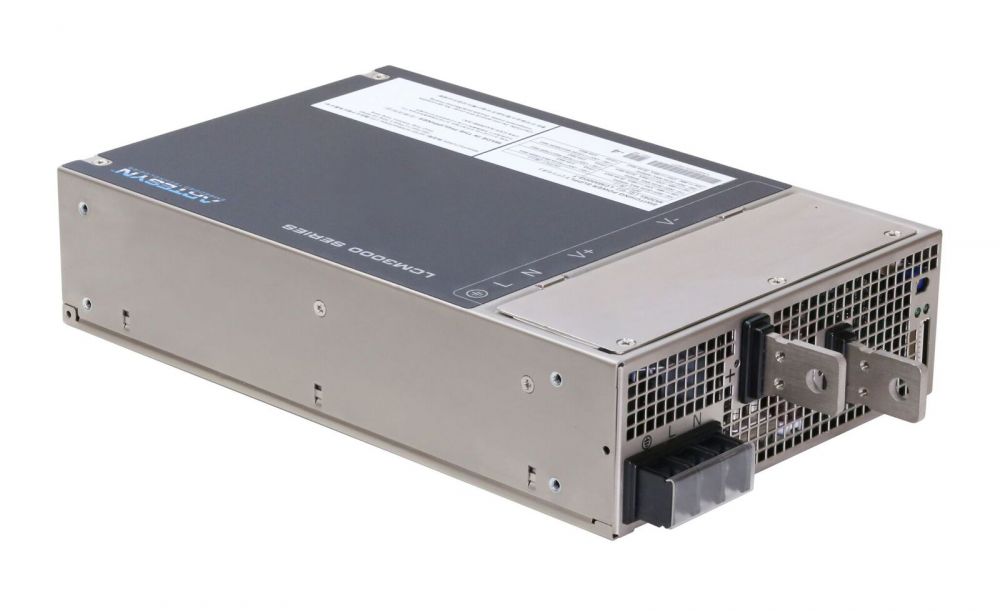

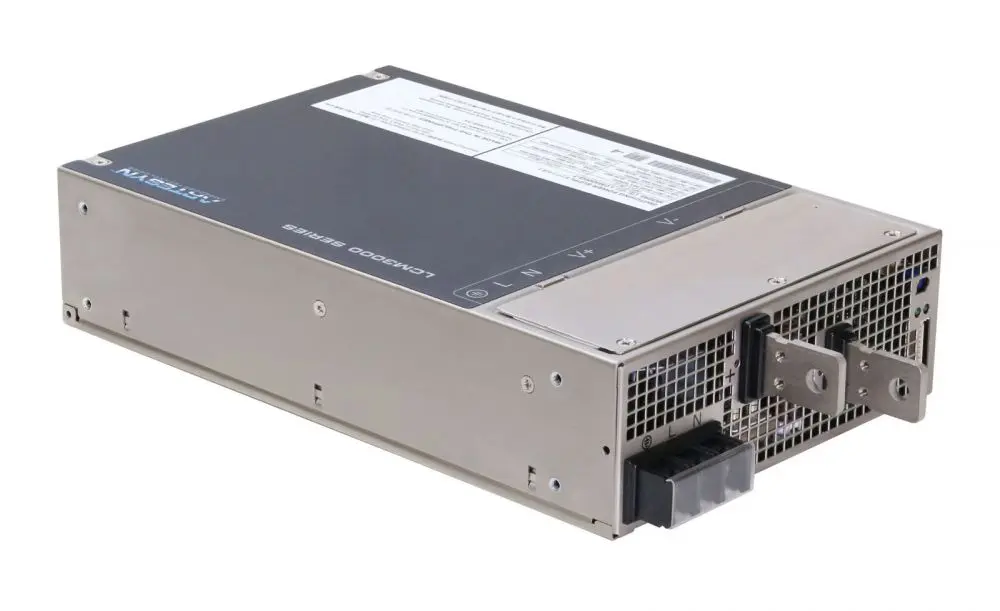

Image is representational - see manufacturer specifications
Artesyn / Advanced Energy Authorized Distributor

LCM1500U-T

AC-DC Power Supply - 1500W - 36VDC - Input: 90 to 264VAC - Terminal Block - 2.5 x 5.2 x 10 inches ...

View Datasheet Ask the Datasheet
RoHS Compliant
OTHER Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The LCM1500U-T is a 1500 W bulk front-end AC-DC power supply designed for industrial and medical applications, featuring a 36 VDC nominal output with an adjustment range of 32.4 to 39.6 V. It delivers up to 43 A maximum continuous current and achieves greater than 89% efficiency at full load with 230 VAC nominal input. The unit operates over a wide input range of 90 to 264 VAC at 47 to 440 Hz, incorporates variable-speed smart fans controlled by DSP for optimized cooling and extended component life, and maintains robust screw terminal connections with comprehensive industrial and medical safety certifications including UL/cUL, TUV-SuD, and CE marking. Its compact dimensions of 2.5" × 5.2" × 10.0" and operating temperature range of -40°C to +70°C with linear derating make it ideal for embedded power applications requiring high reliability and efficiency in space-constrained environments.

Search Keywords: LCM1500UT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Artesyn / Advanced Energy
Part No:
LCM1500U-T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504409540
COO:
PH
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Package Type:
OTHER

IN STOCK: 0

MOQ for out of Stock Qty: 3

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
3
$1,112.03
5
$706.47
8
$466.08
10 +
$456.75
Supplier's Standard Package
Log in for special pricing
