A-DSF-25LPIII/Z by assmann wsw components

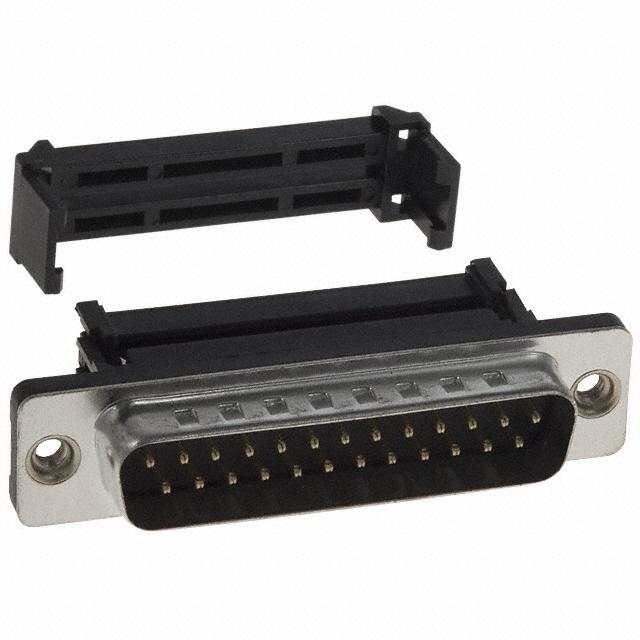

Image is representational - see mfr. specs

A-DSF-25LPIII/Z

Assmann WSW Components

Conn D-Subminiature PIN 25 POS IDT RA Cable Mount 25 Terminal 1 Port ...

Datasheet
RoHS Compliant
TRAY Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

A-DSF-25LPIII/Z is a low-profile D-SUB female connector assembly designed for flat ribbon cable applications with a 25-pin configuration. The connector features a metal housing with strain relief and is RoHS compliant, meeting environmental standards. Based on the dimensional specifications provided, the connector accommodates various pin configurations (9, 15, 25, and 37 positions) with corresponding dimensional parameters ranging from approximately 30.81 mm to 69.32 mm in length (dimension A). The assembly includes a clear hole of 3.05 mm and incorporates both insulator support and strain relief features for robust mechanical performance. This connector is commonly used in industrial control systems, data acquisition equipment, and legacy computer peripherals where reliable ribbon cable connections are required.

Search Keywords: ADSF25LPIIIZ

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Assmann WSW Components
Part No:
A-DSF-25LPIII/Z
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694051
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
48
Package Type:
TRAY
Type:
D-Subminiature
Body Orientation:
Right Angle
Mounting:
Cable Mount
Gender:
Pin
Termination Method:
IDT
Shell Size:
B
Number of Contacts:
25
Contact Plating:
N/A
Operating Temperature:
N/A

IN STOCK: 513

Ships today, if you order in

Minimum Order Quantity: 48

Multiple: 48

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
48
$1.96
144
$1.90
288
$1.80
528
$1.75
1,008
$1.58
2,544
$1.46
5,040
$1.42
7,536 +
$1.41
Suppliers Standard Package
