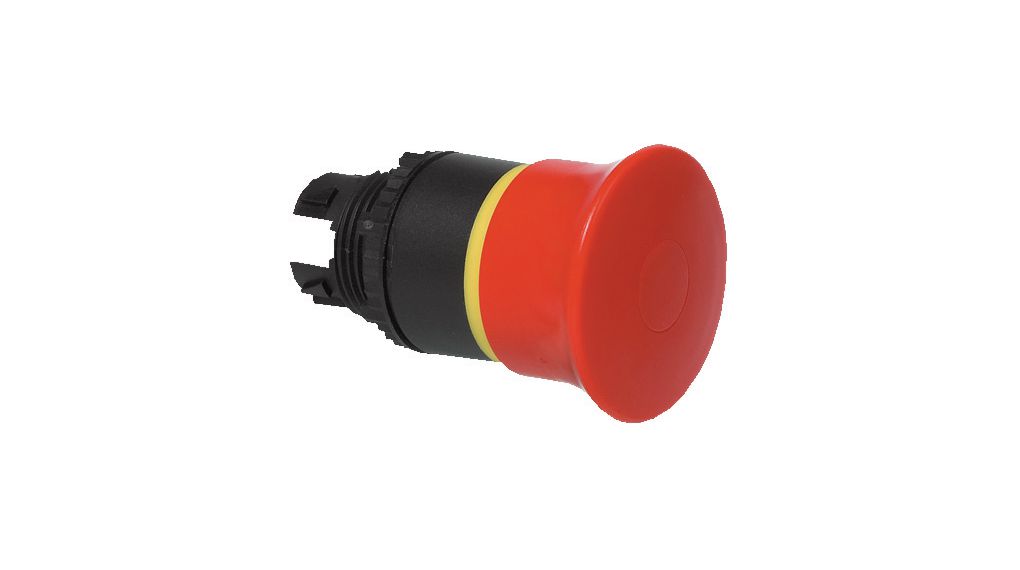

Image is representational - see mfr. specs

L22DR01

BACO Controls, Inc.

22mm Red 40mm Mushroom Push-Pull Emergency Stop Black Bezel ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The L22DR01 is a Ø 40 mm emergency stop button head designed for safety-critical applications requiring immediate machine shutdown. It features a stay-put mechanism with push-pull reset operation and a yellow collar that provides visible head position indication from the side, ensuring operators can confirm the emergency stop state at a glance. The unit is equipped with a locking ring, plastic black bezel, and achieves IP 66 protection rating, making it suitable for harsh industrial environments. It conforms to IEC 60947-5-1, IEC 60947-5-5, and EN 418/ISO 13850 standards, with NC contacts providing positive opening for fail-safe operation. The device operates over a temperature range of -25°C to +70°C and withstands vibration per IEC 60068-2-6. This emergency stop head is commonly used in industrial control stations, machinery safety systems, and automated production lines where reliable emergency shutdown capability is mandatory.

Product Highlights:

Potential Applications:

Search Keywords: L22DR01

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

BACO Controls, Inc.

Part No:

L22DR01

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536509035

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
