DESCRIPTION

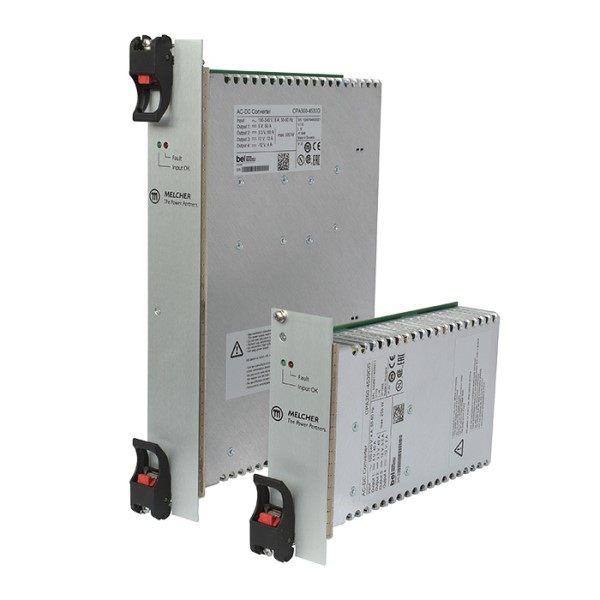

The CPA200-4530G is a 200W AC-DC power supply designed for CompactPCI® systems, providing four regulated outputs. It operates over a wide AC input range of 90 to 264 VAC with active power factor correction (PFC) and delivers a typical efficiency of 83.7%. The four outputs provide +5.0V, +3.3V, +12V, and -12V, with integrated ORing FETs to support n+1 redundant operation and hot-swapping. Housed in a 3U x 8HP module, this converter includes overtemperature, overvoltage, and overcurrent protection, making it a reliable power solution for demanding applications in communications, industrial, and aerospace systems.
