09-9767-70-04 by binder-usa
Image is representational - see manufacturer specifications
Binder-USA Authorized Distributor

09-9767-70-04

Snap-In IP40 Male cable connector, Contacts: 4, 3.0-4.0mm, unshielded, solder, IP40 ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

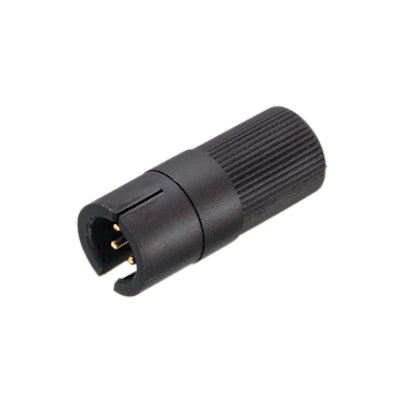

The 09-9767-70-04 is a snap-in male cable connector from the series 719 designed for subminiature applications requiring reliable electrical connections. It features 4 contacts with a cable outlet diameter of 3.0–4.0 mm, solder termination, and IP40 degree of protection, making it suitable for industrial control and plant engineering equipment. The connector operates over a temperature range of -25°C to 70°C and supports a rated voltage of 60 V with a rated current of 3.0 A, delivering an insulation resistance of =10¹° O. The housing and contact body are constructed from polyamide (PA), with brass contacts plated in gold for enhanced durability and conductivity. With over 100 mating cycles and a compact design (approximately 24 mm length and 10.5 mm diameter), this connector is ideal for applications in control systems, electrical equipment, and industrial automation where space efficiency and long-term reliability are essential.

Search Keywords: 0997677004

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Binder-USA
Part No:
09-9767-70-04
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
85369010
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1

IN STOCK: 191

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
5
$8.18
25
$6.64
50
$6.63
100
$6.34
250
$5.83
500
$5.81
1,000
$5.68
2,500 +
$5.45
