99-0413-00-05 by binder-usa

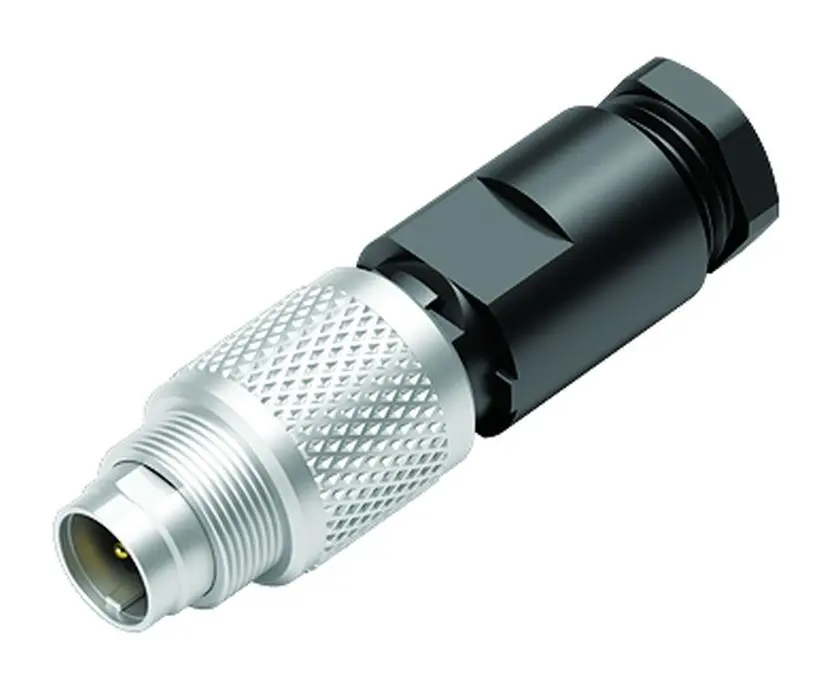

Image is representational - see mfr. specs

99-0413-00-05

Binder-USA

M9 IP67 Male cable connector, Contacts: 5, 3.5-5.0mm, unshielded, solder, IP67 ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 99-0413-00-05 is an M9 male cable connector from the series 712 subminiature connector line, designed for reliable signal and power transmission in industrial control and plant engineering applications. It features 5 solder-terminated contacts with a cable outlet diameter of 3.5–5.0 mm, unshielded design, and screw-type locking system, achieving IP67 degree of protection for harsh environments. The connector is rated for 125 V and 3.0 A per contact with an insulation resistance of =10¹° O, supporting impulse voltages up to 1500 V. Operating across -40 °C to +85 °C with over 500 mating cycles, it employs gold-plated brass contacts and nickel-plated brass housing for corrosion resistance. This connector is ideal for applications requiring compact, sealed connections in control cabinets, sensor interfaces, and distributed automation systems where durability and environmental protection are critical.

Search Keywords: 9904130005

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Binder-USA
Part No:
99-0413-00-05
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
85369010
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Body Orientation:
Straight

IN STOCK: 0

Minimum Order Quantity: 5

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
5
$11.85
25
$10.73
50
$10.26
100
$9.96
250
$9.41
500
$9.16
1,000 +
$9.04
