3292W-1-104LF by bourns

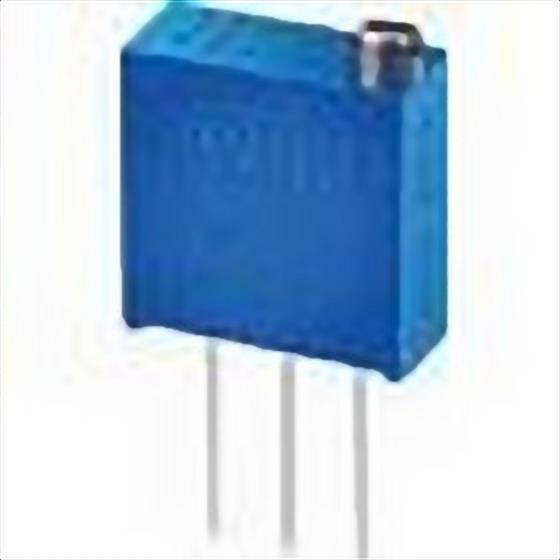

Image is representational - see mfr. specs

3292W-1-104LF

Bourns

Res Cermet Trimmer 100K Ohm 10% 0.5W(1/2W) 25(Elec)Turns 2.29mm (9.53 X 3.81 X 11.05mm) Pin Thru-Hole Tube ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 3292W-1-104LF is a 3/8" square Trimpot® trimming potentiometer manufactured by Bourns, designed for precision resistance adjustment in industrial applications. This multiturn cermet device features a 100 kO standard resistance value with ±10% tolerance, infinite resolution, and 25 turns of effective travel for fine-tuning control. It operates across a temperature range of -65°C to +150°C with a temperature coefficient of ±100 ppm/°C, and delivers 0.5 watts at 85°C with 1,000 megohms minimum insulation resistance at 500 VDC. The sealed, thin-body design with solderable printed circuit pins and RoHS-compliant tin-plated finish (LF suffix) makes it ideal for circuit board trimming, signal conditioning, and calibration in instrumentation, data acquisition, and industrial control systems where reliable long-term performance and compact form factor are essential.

Search Keywords: 3292W1104LF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bourns
Part No:
3292W-1-104LF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536308000
COO:
CR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
TUBE
Mounting:
Through Hole
Number of Turns:
25(Elec) Turns
Termination Style:
Pin
Power Rating:
0.5 (1/2) W
Resistance Value:
100 KOhm
Tolerance:
10 %
Temperature Coefficient:
±100 ppm/°C
Dimension:
9.53 x 3.81 x 11.05 mm
Operating Temperature:
-65 to 150 °C
Switch Option:
No
Number of Elements:
1
  Possible Replacement options available.  See Alternatives

IN STOCK: 100

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 25

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
5
$11.68
10
$11.65
25
$11.62
50
$8.71
75
$8.14
100 +
$7.97
Suppliers Standard Package
