ALTERNATIVE PRODUCTS
ROHs Equivalent
4308R-102-102LF
4308R-102-102LF

In Stock: 159

Minimum Order: 25

VIEW PRODUCT

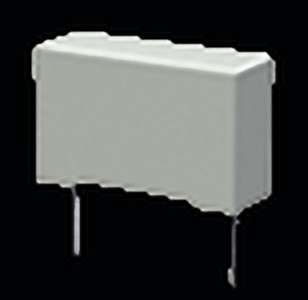

4308R-102-102 by bourns
Image is representational - see mfr. specs

4308R-102-102

Bourns

Res Thick Film NET 1K Ohm 2% 1W ±100ppm/°C ISOL Molded 8-Pin SIP Pin Thru-Hole ...

Datasheet
RoHS Non-Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 4308R-102-102 is an 8-pin isolated thick-film resistor network featuring 4 independent resistors of equal value, each connected between two separate pins. This low-profile molded SIP package provides compatibility with DIPs and automatic insertion equipment, with superior package integrity and RoHS-compliant termination options. The device supports resistance values from 10 ohms to 10 megohms with a maximum operating voltage of 100 V, temperature coefficient of resistance ranging from ±100 ppm/°C to ±250 ppm/°C depending on resistance range, and a power rating of 0.20 watt per resistor at 70°C with derating to zero power from +70°C to +125°C. Environmental testing per MIL-STD-202 demonstrates excellent stability with short-time overload tolerance of ±0.25%, load life tolerance of ±1.00%, and moisture resistance of ±0.50%. This component is ideal for applications requiring precision resistor networks in compact form factors, such as DRAM applications, SCSI termination, and R/2R ladder networks.

Search Keywords: 4308R102102

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bourns
Part No:
4308R-102-102
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536308000
COO:
IE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
TUBE
Case Size:
N/R
Circuit Designator:
ISOL
Number of Resistors:
4
Number of Terminals:
8
Power Rating:
1 W
Power Rating per Resistor:
0.3 W
Resistance Value:
1 KOhm
Tolerance:
2 %
Temperature Coefficient:
±100 ppm/°C
Termination Style:
Pin
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 11,525

Can Ship immediately

Minimum Order Quantity: 25

Multiple: 25

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
25
$1.75
100
$1.57
250
$1.50
500
$1.49
1,000
$1.45
2,500
$1.44
5,000
$1.42
7,500 +
$1.41
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
