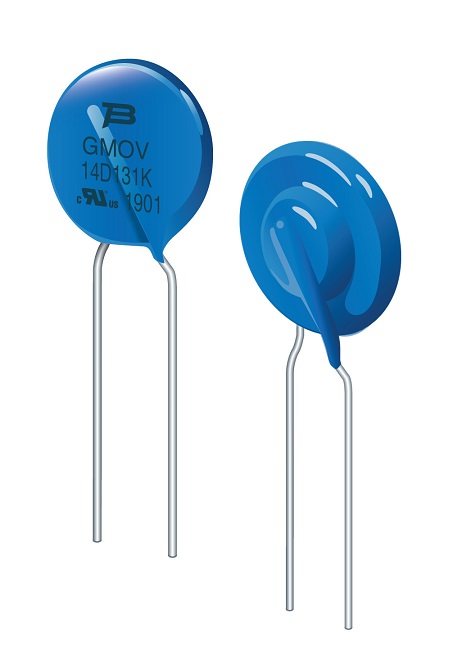

Image is representational - see manufacturer specifications
Bourns Authorized Distributor

GMOV-20D321K

20 mm hybrid protection component combining GDT and MOV technologies for bidirectional surge protection with low leakage and low capacitance. ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Certificate of Compliance

DESCRIPTION

GMOV-20D321K is a 20 mm hybrid protection component that combines Bourns' patented GDT with FLAT technology and a Metal Oxide Varistor (MOV) for superior surge protection. It features a maximum operating voltage (MCOV) of 320 Vrms, MOV voltage of 510 V (±10%), and GDT DC breakdown voltage of 500 V (475–650 V range). The device offers bidirectional protection with low leakage (< 1 µA), low capacitance, and an energy rating of 360 J at 8/20 µs. With a protection level of 1,300 V and clamp voltage of 875 V, it is UL Type 5 recognized and compliant with UL 1449 4th Edition. This component is ideally suited for AC and DC power applications including solar inverters, power supplies, white goods, and SPD systems where long-life protection with high performance is required.

Search Keywords: GMOV20D321K

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bourns
Part No:
GMOV-20D321K
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8533408050
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
250
Package Type:
BOX

IN STOCK: 1,000

Can Ship immediately

Minimum Order Quantity: 250

Multiple: 250

Factory Lead-Time 25 Weeks

Price (USD)

Qty
Unit Price
250
$1.82
500
$1.56
1,000
$1.47
2,500
$1.46
5,000
$1.45
7,500
$1.44
10,000
$1.43
15,000 +
$1.42
