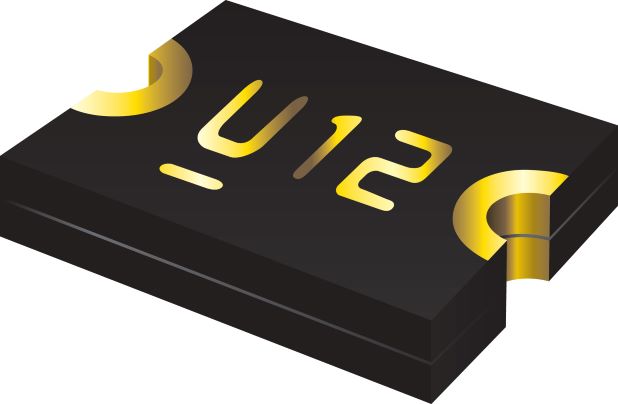

MF-USML700-2
PTC Resettable Fuse 7A(hold) 14A(trip) 6V 50A 0.8W 2s 0.001Ohm SMD Solder Pad 1210 3.43 X 2.8 X 1.2mm T/R ...
DESCRIPTION
MF-USML700-2 is a low-ohmic PTC resettable fuse designed for thermal protection and overcurrent limiting in compact electronic devices. This surface mount component features a 1210 footprint with ultra-low resistance of 0.0010 Ohms at 23°C, a maximum voltage rating of 6V, and a maximum current rating of 50A. The device exhibits a hold current (Ihold) of 7.00A and a trip current (Itrip) of 14.00A, with a maximum time to trip of 35.00 seconds at 23°C. Operating across a temperature range of -40°C to +85°C, the MF-USML700-2 is RoHS compliant and halogen-free, making it suitable for thermal protection in Li-ion battery packs, USB port protection (USB 2.0, 3.0, and OTG), mobile phones, digital cameras, game consoles, and PC motherboards. The component is supplied in tape and reel packaging per EIA 481 standard and requires reflow soldering for assembly.
Search Keywords: MFUSML7002
SPECIFICATIONS
IN STOCK: 6,192
Can Ship immediately
Minimum Order Quantity: 3500
Multiple: 3500
Datasheet
Bourns Profile
Learn more about Bourns® Industrial Automation Solutions with Resistors, Protection Devices and Magnetics
