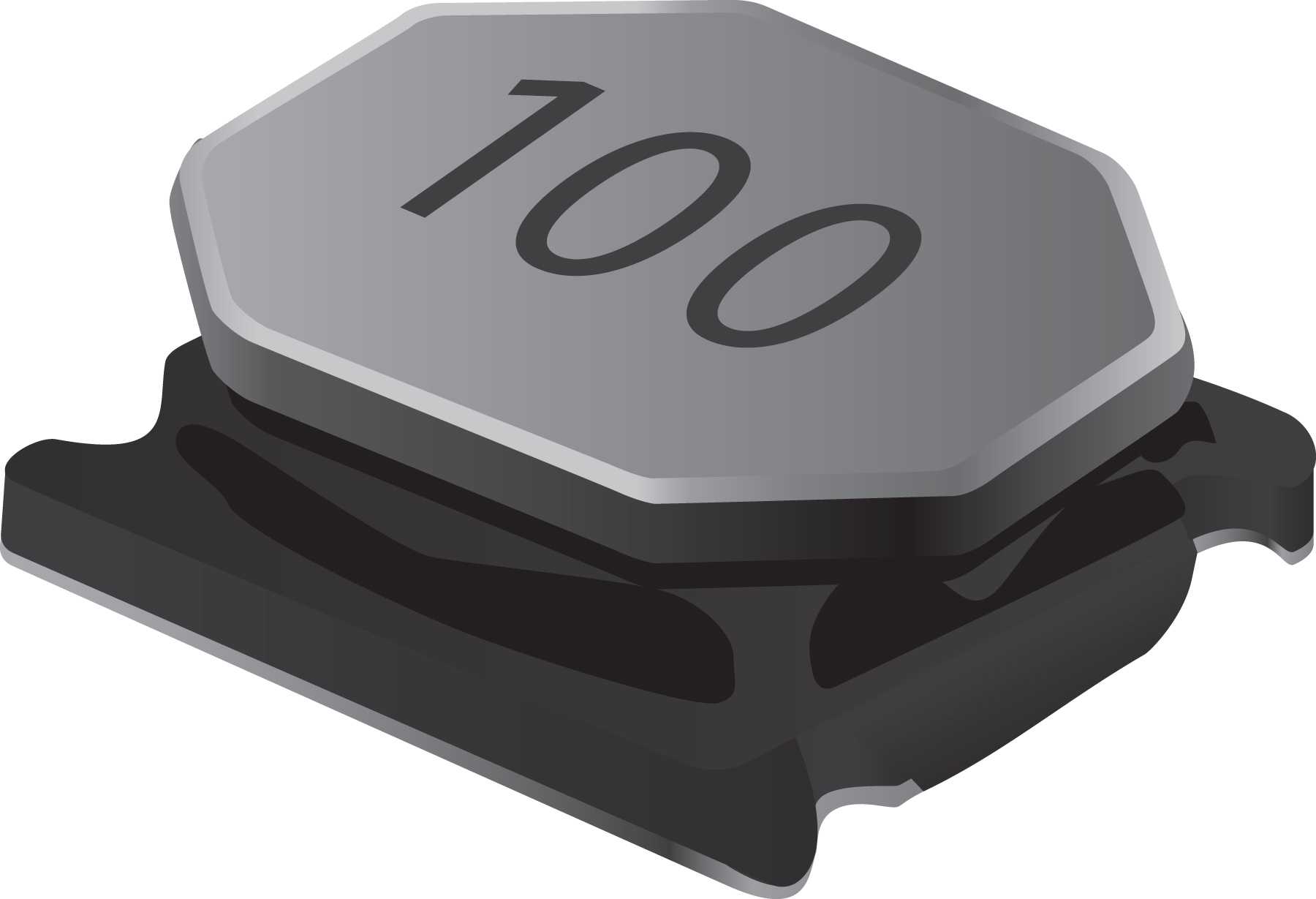

SRN5020TA-220M
SRN5020TA-220M

In Stock: 0

Minimum Order: 2,500

VIEW PRODUCT
SRN5020-220M by bourns
Image is representational - see manufacturer specifications
Bourns Authorized Distributor

SRN5020-220M

Inductor Power Semi-Shielded Wirewound 22uH 20% 100KHz 11Q-Factor Ferrite 1A 312mOhm DCR 2020 T/R ...

View Datasheet Ask the Datasheet
RoHS Compliant
REEL Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

SRN5020-220M is a semi-shielded power inductor from Bourns designed for DC/DC converter applications and portable electronics. It features a 22 µH inductance with 20% tolerance, a maximum DC resistance of 0.312 O, and a rated RMS current of 1.0 A with a saturation current of 0.90 A. The inductor operates over a temperature range of -40°C to +125°C and has a self-resonant frequency of 13 MHz at 2.52 MHz test frequency. Its compact semi-shielded construction with a maximum component height of 2 mm, combined with ferrite core and enameled copper wire, makes it ideal for space-constrained applications such as notebook computers, digital video cameras, and LCD display systems.

Search Keywords: SRN5020220M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bourns
Part No:
SRN5020-220M
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
MY
ECCN:
EAR99
Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2000
Package Type:
REEL
Inductance:
22 uH
Type:
Power
Impedance:
N/A
Tolerance:
20 %
Technology:
Wirewound
Maximum DC Current:
1 A
Maximum DC Resistance:
312 mOhm
Operating Temperature:
-25 to 120 °C
Packaging:
Tape and Reel
Protection Style:
Semi-Shielded
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 6,000

Can Ship immediately

Minimum Order Quantity: 2000

Multiple: 2000

Price (USD)

Qty
Unit Price
2,000
$0.5038
4,000
$0.4879
6,000
$0.4854
8,000
$0.4831
10,000
$0.4760
26,000
$0.4640
50,000
$0.4616
100,000 +
$0.4271
Reel Package
