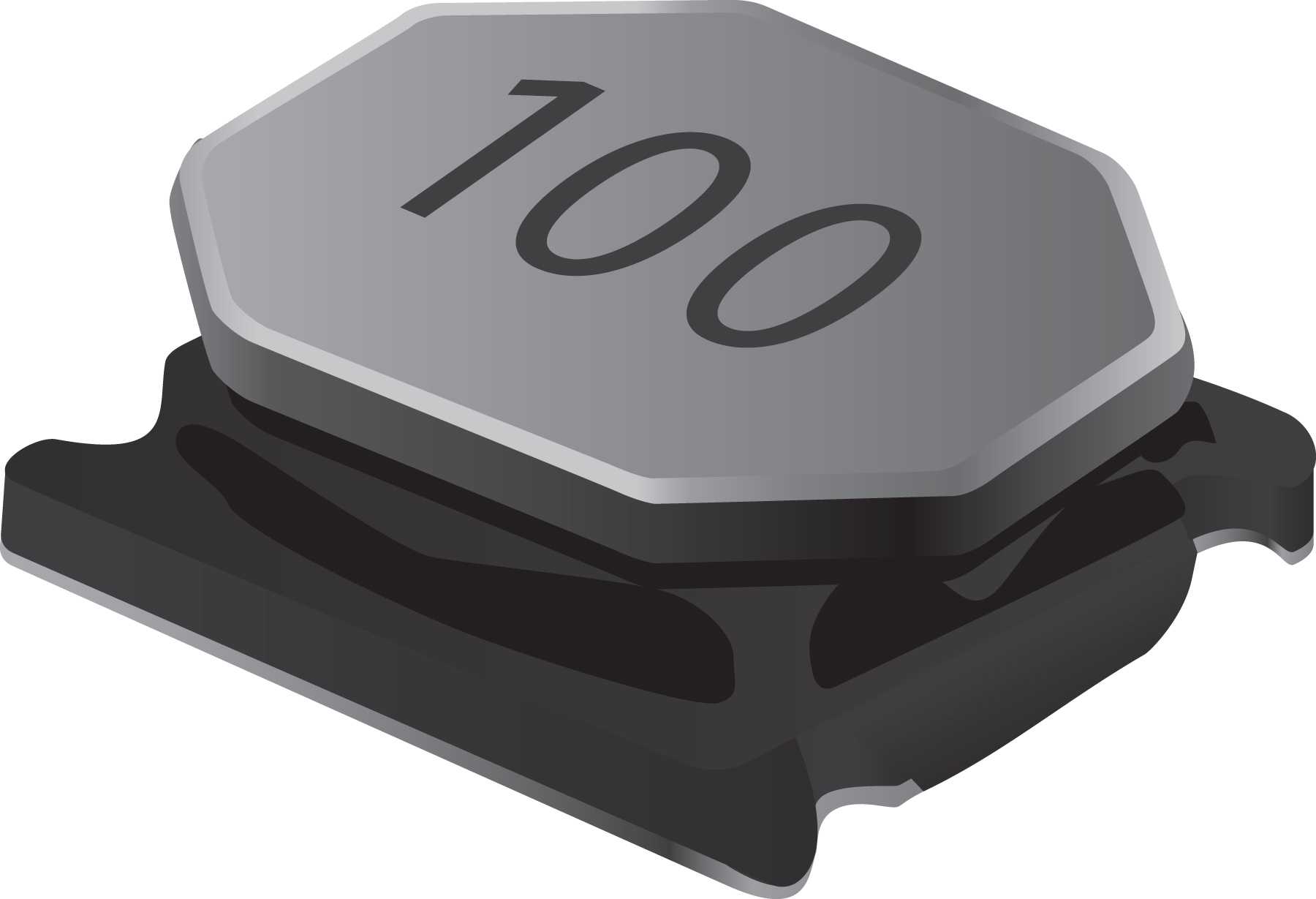

SRN5020TA-6R8M
SRN5020TA-6R8M

In Stock: 0

Minimum Order: 2,500

VIEW PRODUCT
SRN5020-6R8M by bourns
Image is representational - see manufacturer specifications
Bourns Authorized Distributor

SRN5020-6R8M

Inductor Power Semi-Shielded Wirewound 6.8uH 20% 100KHz 11Q-Factor Ferrite 1.65A 108mOhm DCR 2020 T/R ...

View Datasheet Ask the Datasheet
RoHS Compliant
REEL Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

SRN5020-6R8M is a semi-shielded power inductor from Bourns designed for high-current DC/DC converter applications in compact form factors. The inductor features an inductance of 6.8 µH with ±20% tolerance, a maximum DC resistance of 0.108 O, and a rated RMS current of 1.65 A with a saturation current of 1.60 A. It operates at a test frequency of 7.96 MHz with a self-resonant frequency of 23 MHz typical, and has a component height of 2 mm maximum, enabling integration into space-constrained designs. The device is RoHS compliant and halogen-free, with a ferrite core and enameled copper wire construction, making it suitable for notebook computers, digital video cameras, televisions, and LCD display applications where reliable power delivery and thermal stability are essential.

Search Keywords: SRN50206R8M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bourns
Part No:
SRN5020-6R8M
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
MY
ECCN:
EAR99
Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
REEL
Inductance:
6.8 uH
Type:
Power
Impedance:
N/A
Tolerance:
20 %
Technology:
Wirewound
Maximum DC Current:
1.65 A
Maximum DC Resistance:
0.108 Ohm
Operating Temperature:
-40 to 125 °C
Packaging:
Tape and Reel
Protection Style:
Semi-Shielded
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 3,875

Can Ship immediately

Minimum Order Quantity: 2000

Multiple: 2000

Price (USD)

Qty
Unit Price
2,000 +
$0.1671
Log in for special pricing Click for Quote Price Match Request
