SRN5020TA-4R7M by bourns

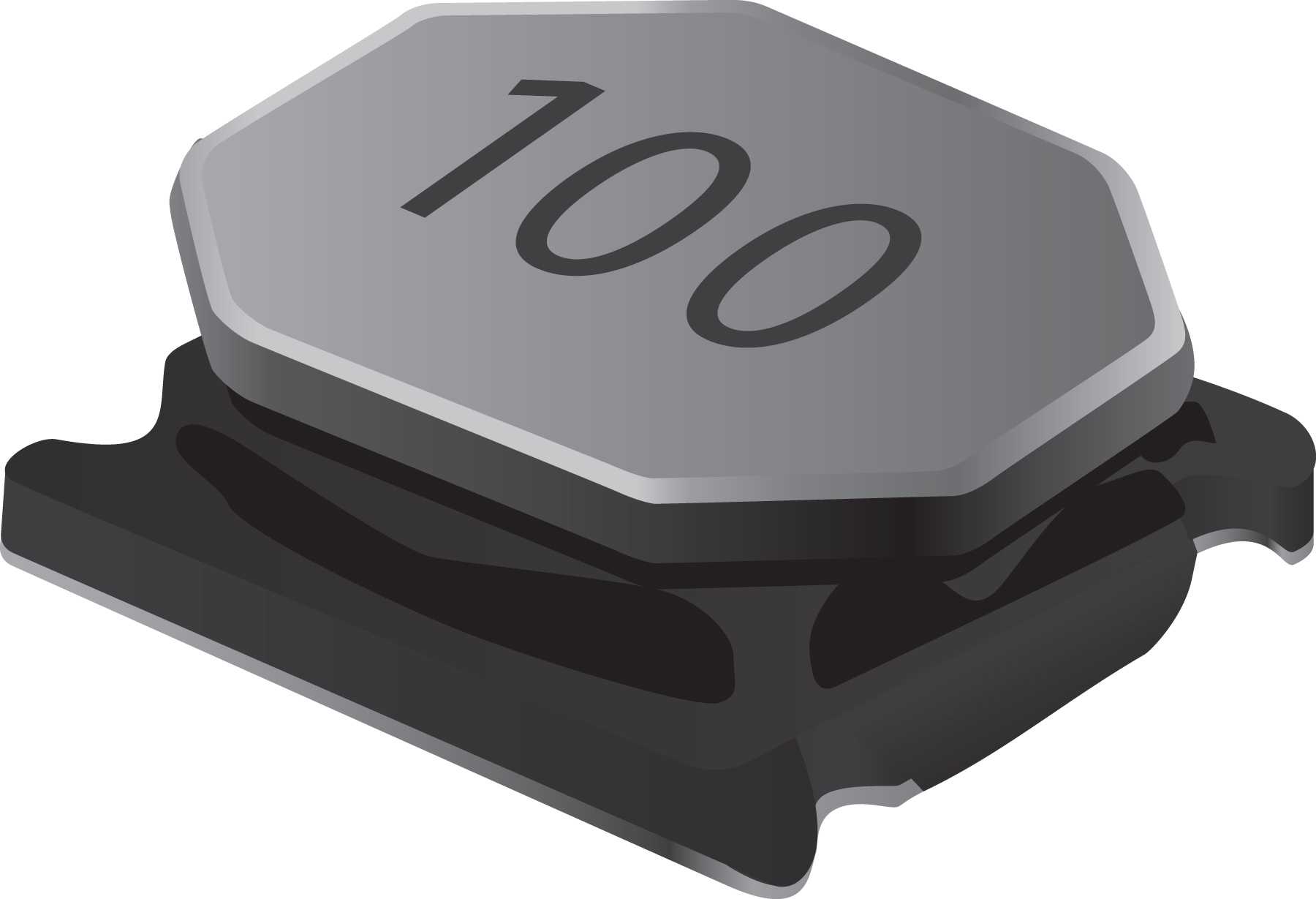

Image is representational - see manufacturer specifications
Bourns Authorized Distributor

SRN5020TA-4R7M

Ind,5x5x1.8mm,4.7uH20%,2.4A,semi-shd,SMD ...

View Datasheet Ask the Datasheet
RoHS Compliant
REEL Packaging
Accessories
Certificate of Compliance

DESCRIPTION

SRN5020TA-4R7M is a semi-shielded power inductor from Bourns' SRN5020TA series, featuring a nominal inductance of 4.7 µH with ±20% tolerance. The inductor is rated for 2.4 A RMS typical current with a saturation current of 2.7 A, and exhibits a DC resistance of 0.06 O (±20%) with a quality factor of 15 at 100 kHz and self-resonant frequency of 58 MHz. It operates reliably across a temperature range of -55°C to +125°C with a 40°C temperature rise at rated current, and features ferrite core construction with enameled copper wire and magnetic epoxy resin coating. The component is AEC-Q200 compliant, RoHS compliant, and halogen-free, making it suitable for automotive and industrial DC/DC converter and power supply applications requiring compact, high-performance energy storage.

Search Keywords: SRN5020TA4R7M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Bourns
Part No:
SRN5020TA-4R7M
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
CN
ECCN:
EAR99
Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2500
Package Type:
REEL

IN STOCK: 0

Minimum Order Quantity: 2500

Multiple: 2500

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
2,500
$0.1418
5,000
$0.1398
7,500
$0.1378
10,000
$0.1360
25,000
$0.1334
50,000
$0.1318
100,000 +
$0.1315
Reel Package
