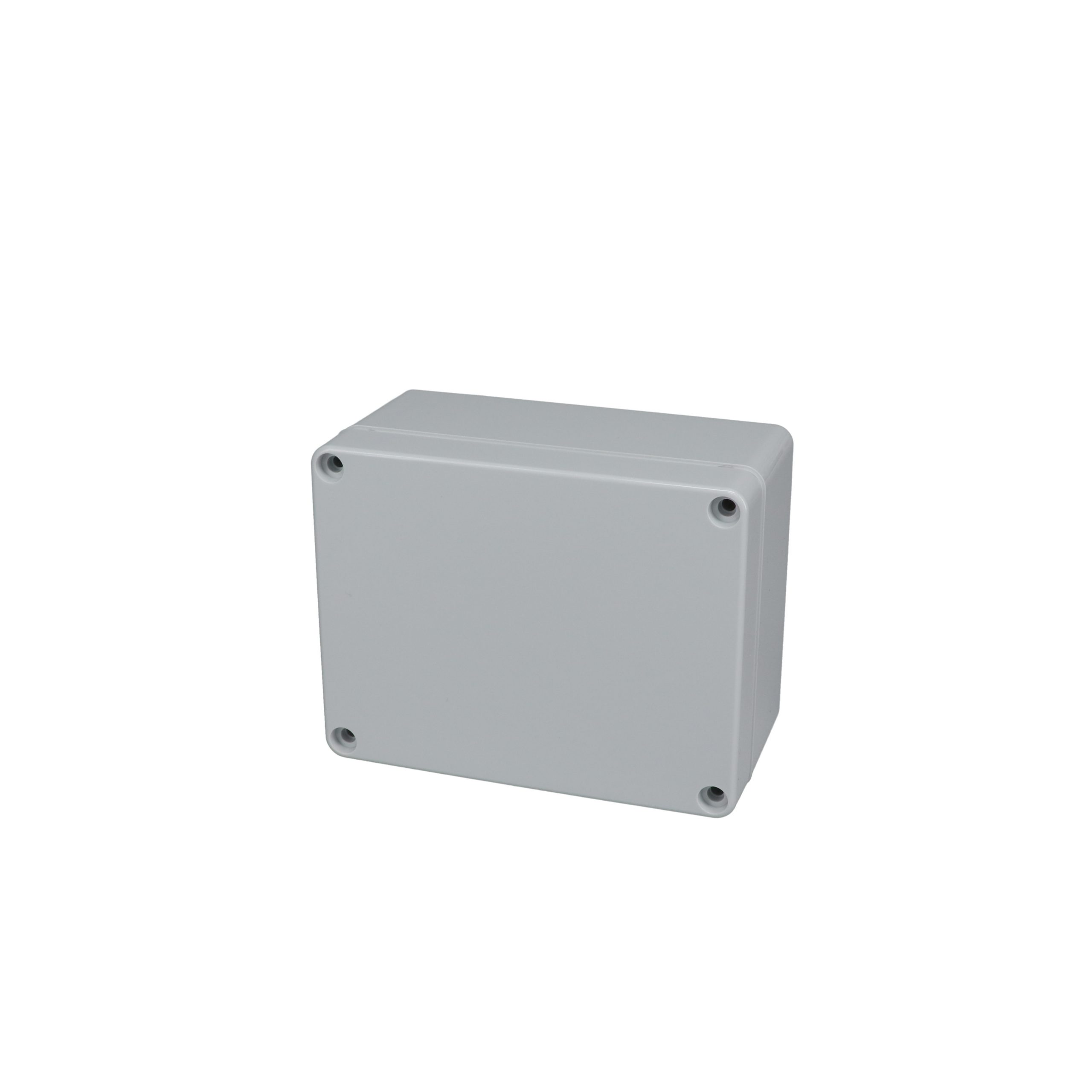

Image is representational - see mfr. specs

PN-1322

Light Gray Polycarbonate Bracket Mount NEMA 4X Enclosure - External 4.53 x 2.56 x 2.17 Inches - Internal 4.16 x 2.32 x 1.95 Inches ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

360 Image

DESCRIPTION

PN-1322 is a NEMA 4X enclosure manufactured from UV-stabilized polycarbonate material in light gray finish, designed for harsh environmental protection of electrical and electronic components. The enclosure features a service temperature range of -40°C to +120°C and meets UL94-HB flammability rating (UL File #E41610) and UL Standard 174 requirements. It includes a silicone gasket for sealing and is equipped with four M4 x 0.315 inch long threaded inserts for secure mounting. The enclosure dimensions are 4.528 inches (length) × 2.559 inches (width) × 3.740 inches (height), with a cover assembly and body constructed to ±0.015 inch tolerance. PN-1322 is ideal for outdoor and corrosive environments where NEMA 4X protection is required, offering reliable performance in industrial, telecommunications, and utility applications.

Product Highlights:

Potential Applications:

Search Keywords: PN1322

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Bud Industries

Part No:

PN-1322

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538100000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
