Image is representational - see mfr. specs

SNB-3730

Bud Industries

Light Gray Steel Wall Mount NEMA Box - External 9.84 x 7.87 x 5.91 Inches - Internal 8.25 x 6.28 x 5.33 Inches ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

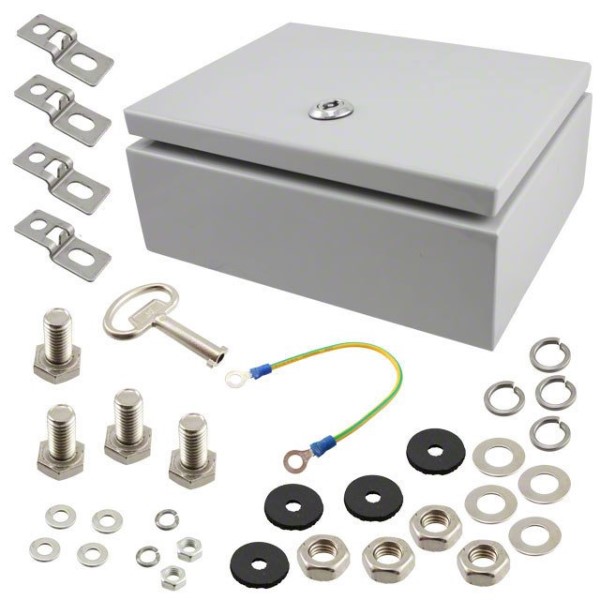

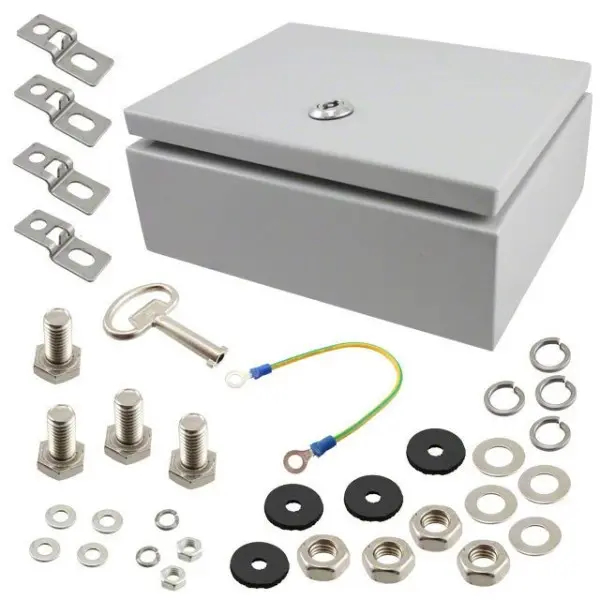

SNB-3730 is a NEMA-rated sheet metal enclosure box designed for industrial and electrical applications requiring environmental protection. The enclosure features a body and cover constructed from Type 201 stainless steel with a light gray smooth powder coat finish, and includes a quarter-turn keyed latch with zinc die cast construction and chrome plating. Key dimensions include 9.84 in (250 mm) x 7.87 in (200 mm) x 5.91 in (150 mm), with an internal panel measuring 8.46 in (215 mm) x 5.91 in (150 mm). The unit is supplied with a wall mounting bracket kit containing 4 brackets, M10x1.5 x 19.5mm bolts, sealing washers, and hardware, as well as a grounding kit with ground wire and associated fasteners. This enclosure is ideal for housing electrical components, control systems, and instrumentation in environments requiring NEMA-level protection.

Product Highlights:

Potential Applications:

Search Keywords: SNB3730

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Bud Industries

Part No:

SNB-3730

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536908530

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
