2GM51-78 by carling technologies

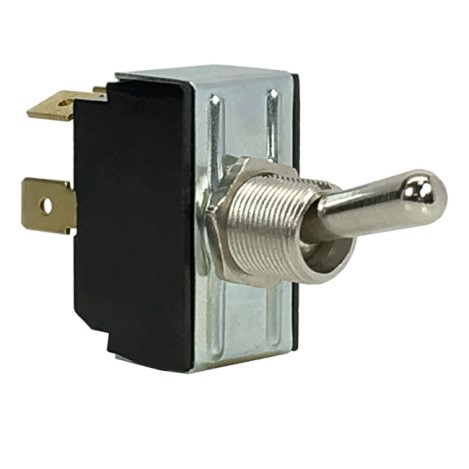

Image is representational - see manufacturer specifications
Carling Technologies Authorized Distributor

2GM51-78

2-pole - ON-OFF-ON - 10A/15A 250VAC/125VAC 3/4 HP - Non-Illuminated - Sealed Bat Style Toggle - .250 Tab (Q.C.) ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

2GM51-78 is a double pole sealed toggle switch from the Carling Technologies G-Series, featuring an On-Off-On circuit function. This switch offers ratings up to 10A 250VAC, 15A 125VAC, and 3/4 HP 125-250VAC, with a bat-style actuator and sealed construction (actuator style 78). It features a dielectric strength of 1000V (UL/CSA) for live to dead metal parts and opposite polarity, with an electrical life of 50,000 cycles for maintained operation. The switch operates over a temperature range of 32°F to 185°F (0°C to 85°C) and includes a 15/32-32UNS-2A threaded bushing with 0.465 inch bushing length and 0.687 inch toggle length. Common applications include marine, generators, industrial equipment, office automation, and medical equipment.

Search Keywords: 2GM5178

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
2GM51-78
Alias/AKA:
GGG-35810000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
559.27 A
Actuator Style:
Bat Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Quick Connect
Dimension:
33.22 x 19.05 x 60.11 mm
Operating Temperature:
0 to 85 °C

IN STOCK: 254

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
5
$16.94
25
$16.54
50
$15.71
100
$13.65
300
$13.32
500
$13.28
1,000 +
$13.25
