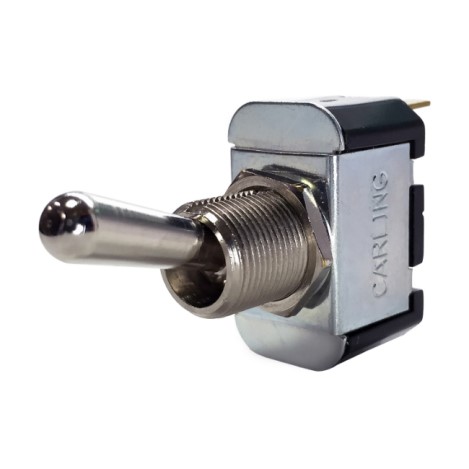

6FA54-73 by carling technologies
Image is representational - see mfr. specs

6FA54-73

Carling Technologies

1-pole - (ON)-None-OFF - 10A/15A 250VAC/125VAC 3/4 HP - Non-Illuminated Bat Style Toggle - Screw Terminals ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 6FA54-73 is a single pole toggle switch featuring a (On)-None-Off momentary circuit configuration with screw terminal connections, designed for general-purpose industrial and commercial applications. This switch is rated for up to 20A at 277VAC, with additional ratings available up to 12A at 250VAC and 1HP at 120-240VAC, providing versatile electrical performance across multiple voltage and current requirements. The switch incorporates a bat-style toggle actuator with a 0.687-inch toggle length and 0.465-inch bushing length, along with a dielectric strength of 1000V between live and dead metal parts and an electrical life of 50,000 cycles in maintained operation or 25,000 cycles in momentary operation. Operating temperature range spans from 0°F to 150°F (-17.8°C to +65.6°C), ensuring reliable performance in diverse environmental conditions. The 6FA54-73 is well-suited for marine generators, industrial equipment, office automation, and medical device applications where dependable switching control is essential.

Search Keywords: 6FA5473

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
6FA54-73
Alias/AKA:
FMO-29883000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Pole Throw Configuration:
1P1T (SPST)
Switch Configuration:
OFF None (ON)
Contact Rating @ Voltage:
559.27 A
Actuator Style:
Bat Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
28.8 x 16.1 x 55.67 mm
Operating Temperature:
-17.8 to 65.6 °C

IN STOCK: 393

Can Ship immediately

Minimum Order Quantity: 20

Multiple: 20

Factory Lead-Time 8 Weeks
