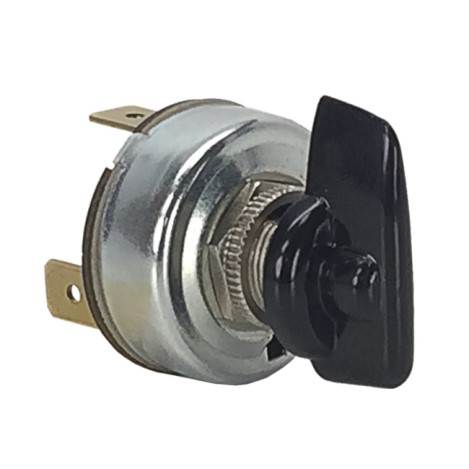

700-A-BL by carling technologies
Image is representational - see manufacturer specifications
Carling Technologies Authorized Distributor

700-A-BL

1-pole - OFF-ON-ON-ON - 2A/4A/1A 250VAC/125VAC/125VDC not HP rated - Non-Illuminated Black Knob Rotary - .250 Tab (Q.C.) ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 700-A-BL is a single-pole multi-position rotary switch designed for general-purpose control applications. It features a nylon actuator in metal-clad construction with self-cleaning silver-plated contact design, providing reliable switching performance. The switch is rated for 1 to 6 amperes at 125 VAC or 250 VAC, and 125 VDC, with a dielectric strength of 1000V (UL/CSA minimum) and insulation resistance of 100 megohms minimum. The base material is steel with zinc plating, and the actuator is brass with nickel plating. This switch is commonly used in multi-position speed controls for small appliances, industrial control systems, and marine applications such as electric fans.

Search Keywords: 700ABL

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
700-A-BL
Alias/AKA:
700-02500000
Unit of Measure:
Per Package
RoHS:
No
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Number of Positions:
4
Pole Throw Configuration:
SP4T
Actuator Length:
11.43 mm
Dimension:
29.21 x 28.57 x 43.04 mm
Actuator Style/Diameter:
Knob Shaft
Mounting:
Panel Mount
Body Orientation:
Straight
Terminal Type:
Quick Connect
Angle of Throw:
45 °
Contact Rating @ Voltage:
4@125VAC A

IN STOCK: 407 Packages

Can Ship immediately

Minimum Order Quantity: 20 Packages

Multiple: 20 Packages

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
20
$14.61
40
$13.43
60
$13.00
100
$11.52
260
$9.71
500
$9.40
1,000 +
$9.03
Supplier's Standard Package
