AA1-B0-34-625-5D1-C by carling technologies

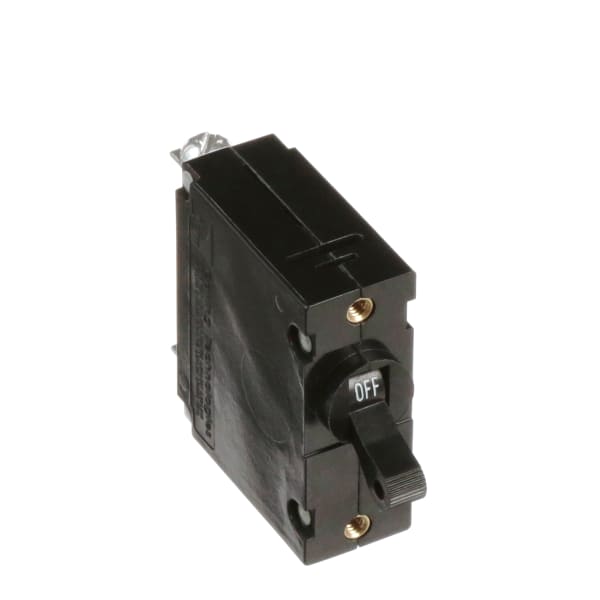

Image is representational - see mfr. specs

AA1-B0-34-625-5D1-C

Carling Technologies

Circuit Breaker 1Pole 25A 277VAC/80VDC ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The AA1-B0-34-625-5D1-C is a single-pole A-Series hydraulic-magnetic circuit breaker with a handle actuator designed for general-purpose and full-load applications. It is rated for 25 amps continuous current at 277 VAC (50/60 Hz) or 80 VDC maximum, with a maximum interrupting capacity of 7,500 amps and series trip (current) protection. The breaker features a compact design with a 0.96-inch wide bezel for front panel snap-in mounting without handleguard, and includes threaded inserts (6-32 x 0.195 inches) for secure installation. It is UL 489A listed and available with various terminal configurations including push-on 0.250-inch tabs, screw terminals with upturned lugs, and bus-type options. Common applications include marine, telecom, renewable energy, generators, welders, military, industrial automation, commercial food service, and medical equipment installations.

Search Keywords: AA1B0346255D1C

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
AA1-B0-34-625-5D1-C
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Type:
N/A
Voltage Rating:
277,80 VAC|VDC
Number of Poles:
1
Current Rating:
25 A
Terminal Design:
Screw
Operating Temperature:
-40 to 85 °C
Mounting:
Panel Mount

IN STOCK: 1

Ships today, if you order in

Buy all 1 in-stock or the regular minimum order quantity of 10

Stock lot only: 1

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$26.195
10
$23.814
30
$22.681
50
$22.166
100
$17.345
250
$16.593
500
$16.027
1,000 +
$15.625
