TIGC5M-6S-BL-NBL by carling technologies

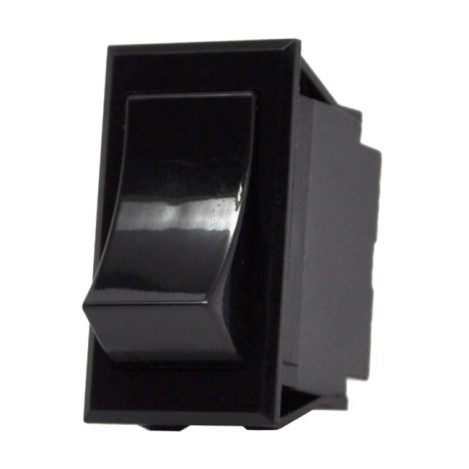

Image is representational - see mfr. specs

TIGC5M-6S-BL-NBL

Carling Technologies

1-pole - (ON)-OFF-(ON) - 10A/15A/15A 250VAC/125VAC/6-28VDC 3/4 HP @ 125-250VAC - Non-Illuminated Black Curved/Smooth Face Gloss Rocker - .250 Tab (Q.C.) ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

TIGC5M-6S-BL-NBL is a Tippette full-sized rocker switch featuring a curved smooth-face gloss actuator with black color and nylon snap-in bracket mounting. The switch is rated for 15 amps at 125 VAC, 10 amps at 250 VAC, 3/4 HP at 125–250 VAC, and 15 amps at 12–30 VDC, with contact materials of fine silver and silver cad-oxide for reliable electrical performance. Terminals are brass or copper/silver plated with 1/4" (6.3 mm) quick-connect terminations as standard, and the switch is rated for 25,000 to 50,000 cycles depending on circuit configuration. Operating temperature is rated up to 85°C, and the switch carries UL, CSA, and VDE agency certifications. This switch is suitable for general-purpose applications in commercial food equipment, recreational vehicles, and other environments where environmental protection and reliable switching are required.

Search Keywords: TIGC5M6SBLNBL

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
TIGC5M-6S-BL-NBL
Alias/AKA:
TGG-49689000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Mounting:
Panel Mount
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
(On) Off (On)
Contact Rating @ Voltage:
559.27 A
Actuator Style:
Curved/Smooth Face Gloss Rocker
Actuator Color:
Black
Bezel Color:
Black
Illumination:
N/R
Terminal Type:
Quick Connect
Body Orientation:
Straight

IN STOCK: 555

Can Ship immediately

Minimum Order Quantity: 20

Multiple: 20

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
20
$12.94
40
$12.40
60
$11.97
100
$8.62
260
$6.63
500
$6.62
1,000 +
$6.47
Suppliers Standard Package
