TTGC-TA201-TW-B by carling technologies

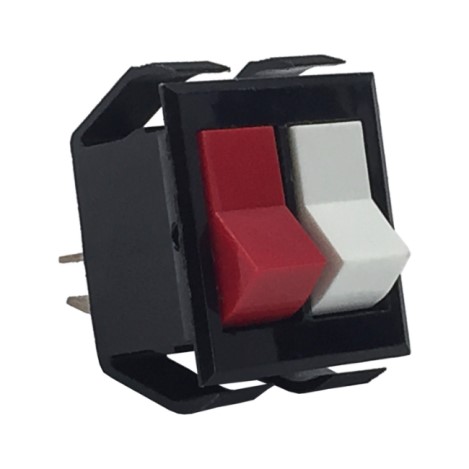

Image is representational - see manufacturer specifications
Carling Technologies Authorized Distributor

TTGC-TA201-TW-B

2-pole - ON-None-OFF - 10A/15A 250VAC/125VAC 3/4 HP - Non-Illuminated White Rocker - .250 Tab (Q.C.) ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The TTGC-TA201-TW-B is a mid-sized two-pole illuminated rocker switch with snap-in base configuration, featuring an On-None-Off circuit function on the first pole and an On-None-Off lighted circuit on the second pole. The switch is rated for 10 A at 250 VAC, 15 A at 125 VAC, and 3/4 HP at 125–250 VAC, with a dielectric strength of 1000 V (UL/CSA) between live and dead metal parts. It operates across a temperature range of 0 °C to 85 °C and is rated for 50,000 cycles in maintained operation and 25,000 cycles in momentary operation. The rocker actuator is white with a black base, and the switch features integrated wire leads for termination. This product is suitable for appliances, HVAC systems, transportation, commercial food equipment, and medical devices requiring reliable low-voltage DC and AC switching.

Search Keywords: TTGCTA201TWB

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
TTGC-TA201-TW-B
Alias/AKA:
4TT-21606130
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Mounting:
Panel Mount
Pole Throw Configuration:
2P1T (DPST)
Switch Configuration:
OFF None ON
Contact Rating @ Voltage:
559.27 A
Actuator Style:
Rocker
Actuator Color:
White
Bezel Color:
Black
Illumination:
N/R
Terminal Type:
Quick Connect
Body Orientation:
Straight

IN STOCK: 0

Minimum Order Quantity: 5

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
5
$7.33
25
$6.15
100
$5.70
300
$4.45
500
$4.26
1,000
$4.15
2,500
$4.05
5,000 +
$4.00
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
