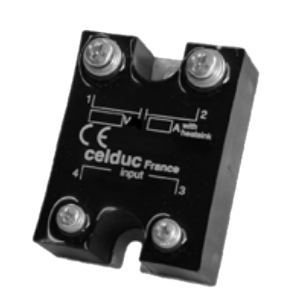

SC942110 by celduc
Image is representational - see manufacturer specifications
Celduc Authorized Distributor

SC942110

SSR 25A - 230VAC - Control 4-30VDC ...

View Datasheet Ask the Datasheet
RoHS Compliant
CARTON Packaging
Accessories
Certificate of Compliance

DESCRIPTION

SC942110 is a single-phase power solid-state relay designed for switching resistive AC loads with zero-cross synchronization. It features a 4-30VDC control input with 3-30 mA control current and a 12-280VAC output rated at 25A RMS (AC-51 nominal current), with a peak voltage capability of 600V. The relay provides 4000 VRMS input-output isolation and 2500 VRMS output-case isolation, ensuring robust electrical separation. With turn-on and turn-off times of 10 ms maximum, an operating frequency range of 0.1-440 Hz, and a non-repetitive overload current (Itsm) of 284A, this relay is well-suited for industrial heating, lighting control, and power switching applications requiring reliable solid-state switching without mechanical contacts.

Search Keywords: SC942110

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Celduc
Part No:
SC942110
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536507000
COO:
FR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
38
Package Type:
CARTON

IN STOCK: 38

Can Ship immediately

Manufacturer Stock: 86   can ship 10/5/26

Factory Lead-Time 9 Weeks can ship 11/24/26

Price (USD)

Qty
Unit Price
1
$49.80
5
$46.93
10
$46.23
38
$44.33
76
$43.76
114
$43.65
266 +
$43.50
Supplier's Standard Package
