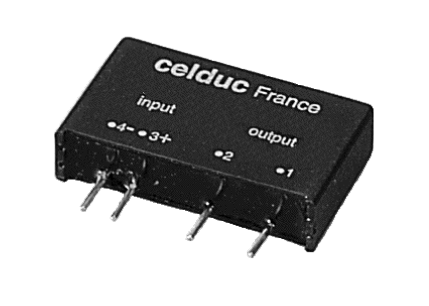

SKD10306 by celduc
Image is representational - see manufacturer specifications
Celduc Authorized Distributor

SKD10306

SSR 3A - 60VDC - Control 3-30V ...

View Datasheet Ask the Datasheet
RoHS Compliant
TUBE Packaging
Accessories
Certificate of Compliance

DESCRIPTION

SKD10306 is a DC solid state relay designed for printed circuit board applications, providing galvanic isolation between control and load circuits. The relay features a 3-30 VDC input range with a minimum control voltage of 3 VDC and maximum of 30 VDC, while the output operates across 2-60 VDC with a peak voltage rating of 60 VPEAK. It delivers a nominal output current of 3 A with a maximum accidental overload capacity of 10 APEAK, an on-state voltage drop of 1.6 VDC, and fast switching times of 200 µs turn-on and 800 µs turn-off. The device provides 2500 VRMS input-output isolation voltage and operates reliably across -40°C to +80°C, making it suitable for industrial control, automation, and inductive load switching applications where solid-state reliability and compact form factor are required.

Search Keywords: SKD10306

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Celduc
Part No:
SKD10306
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410030
COO:
FR
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
20
Package Type:
TUBE

IN STOCK: 20

Can Ship immediately

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$26.77
5
$25.08
20
$23.63
40
$22.91
60
$22.47
100
$21.94
260 +
$20.94
Supplier's Standard Package
Log in for special pricing
