3020-14-0100-00 by cnc tech

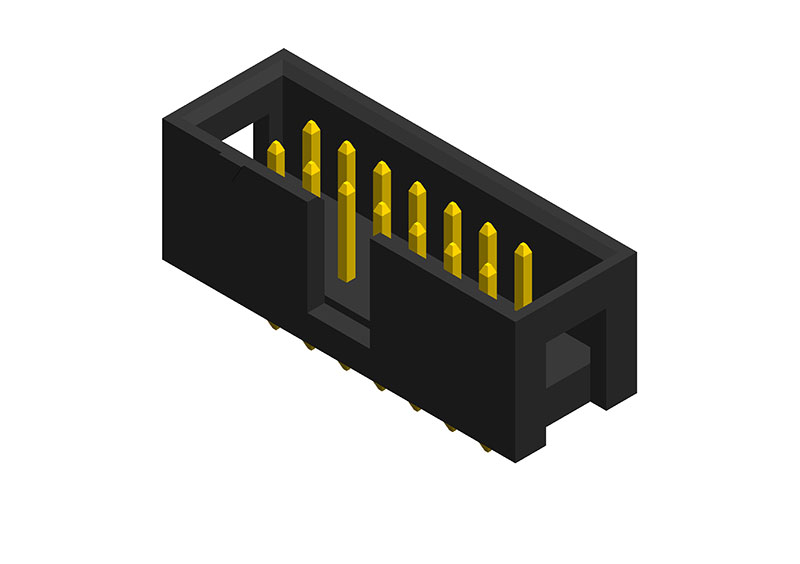

Image is representational - see mfr. specs

3020-14-0100-00

CNC Tech

IDC Box Header - Pitch 0.100" (2.54mm) - 14Pos Low Profile - Straight - Nylon 9T - Flash Gold ...

Datasheet
RoHS Compliant
CARTON Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 3020-14-0100-00 is a 2.54mm pitch box header straight type connector designed for reliable PCB interconnection applications. It features a current rating of 3.0A (AC/DC) and voltage rating of 250V (AC/DC), with a contact resistance of 20 mO maximum and insulation resistance of 1,000 MO minimum. The connector utilizes a Nylon 6T (UL94V-0) black insulator body with copper alloy terminals finished in gold flash, ensuring durability and corrosion resistance. It operates reliably across a wide temperature range of -40°C to +105°C and withstands 600V AC per minute, making it suitable for industrial cable and connector applications requiring robust electrical performance and long-term reliability.

Search Keywords: 302014010000

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CNC Tech
Part No:
3020-14-0100-00
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1200
Package Type:
CARTON

IN STOCK: 1,200

Can Ship immediately

Minimum Order Quantity: 50

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
50
$0.5744
500
$0.4667
1,200
$0.4458
3,600
$0.4092
6,000
$0.4082
8,400
$0.4072
10,800
$0.3983
15,600 +
$0.3973
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
