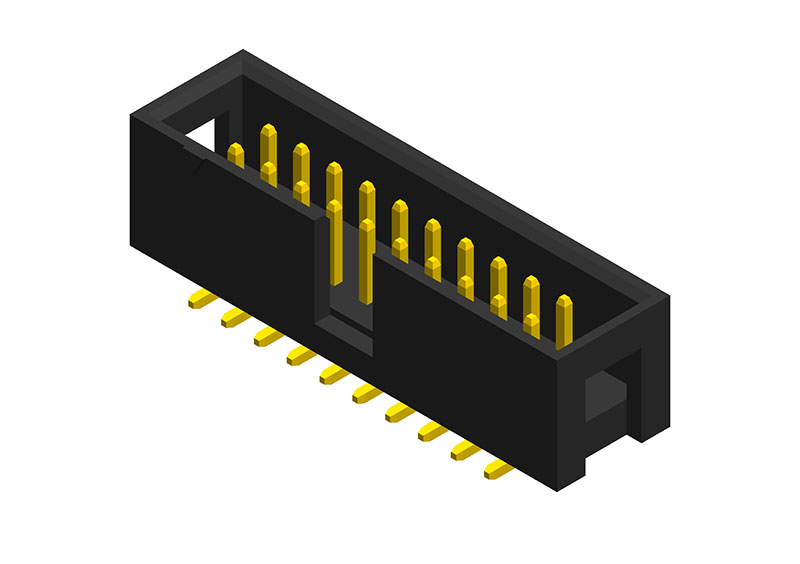

3020-20-0300-00 by cnc tech
Image is representational - see mfr. specs

3020-20-0300-00

CNC Tech

IDC Box Header - Pitch 0.100" (2.54mm) - 20Pos Low Profile - SMT - Nylon 9T - Flash Gold ...

Datasheet
RoHS Compliant
CARTON Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 3020-20-0300-00 is a 2.54mm box header SMD type connector manufactured by CNC Tech for industrial cable and connector applications. It features a current rating of 3.0A AC/DC, voltage rating of 250V AC/DC, and contact resistance of 20 ohm maximum, with insulation resistance of 1,000M ohm minimum. The connector utilizes brass contacts with gold plating and a nylon (UL9494V-0) insulator body, operating reliably across a temperature range of -40°C to +105°C. This connector is ideal for PCB-mounted applications requiring robust electrical connections in industrial and commercial equipment, offering RoHS compliance and withholding voltage of 600V AC/minute for enhanced safety and durability.

Search Keywords: 302020030000

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CNC Tech
Part No:
3020-20-0300-00
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
960
Package Type:
CARTON
  Different packaging options available.  See Alternatives

IN STOCK: 876

Can Ship immediately

On Order: 960   can ship 9/28/26

Minimum Order Quantity: 50

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
50
$1.383
250
$0.897
960
$0.707
1,920
$0.651
2,880
$0.650
5,760
$0.603
7,680
$0.602
10,560 +
$0.578
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
